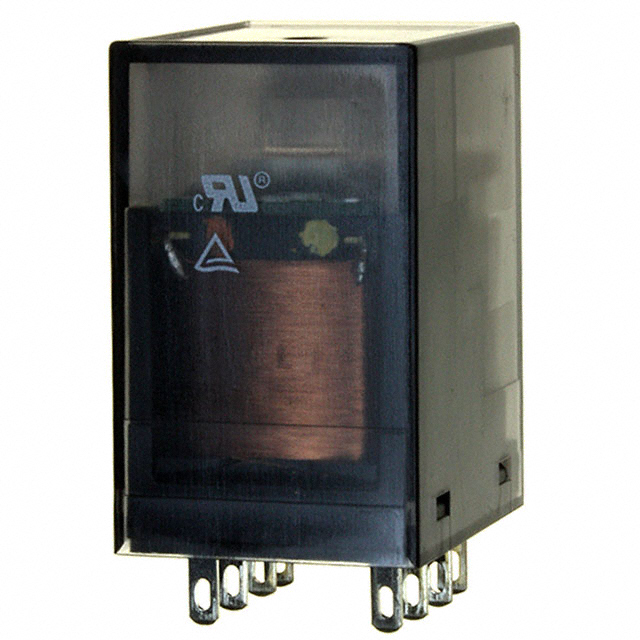

PT22AS15B

Part Number
PT22AS15B
Manufacturer TE Connectivity Potter & Brumfield Relays
Other Part Numbers
PB1149-ND
1721216-7
2266-PT22AS15B
PB1149
0-1721216-7
Description RELAY GEN PURPOSE DPDT 12A 115V
Detailed Description General Purpose Relay DPDT (2 Form C) 115VAC Coil Socketable
Datasheet Datasheet

Product Attributes

Category
Manufacturer TE Connectivity Potter & Brumfield Relays
Series
PTH, SCHRACK
Packaging
Bulk
Part Status Obsolete
Features Lighted Indicator
Mounting Type Socketable
Coil Voltage 115VAC
Operating Temperature -45°C ~ 70°C
Termination Style Plug In
Approval Agency CQC, cURus, TUV
Relay Type General Purpose
Coil Current 8.8 mA
Coil Type Non Latching
Contact Material Silver Nickel (AgNi)
Contact Form DPDT (2 Form C)
Contact Rating (Current) 12 A
Switching Voltage 440VAC - Max
Must Release Voltage 34.5 VAC
Must Operate Voltage 92 VAC
Operate Time 20 ms
Release Time 20 ms
Load - Max Switching 5280VA

Documents & Media

RESOURCE TYPE LINK
Datasheets PT22AS15B
Datasheets PTH Series Flyer

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.49.0075
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected

Obsolete

This product is no longer manufactured.
