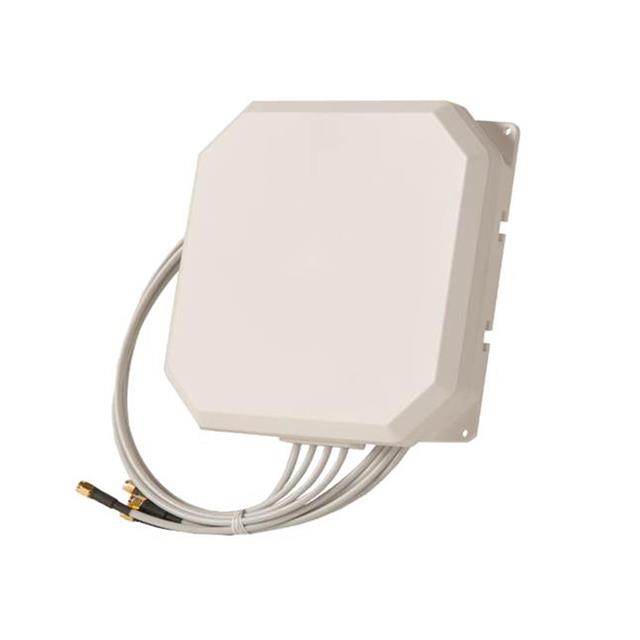

PSQ24495-91RSM

PSQ24495-91RSM

Part Number	PSQ24495-91RSM
Manufacturer	TE Connectivity Laird
Other Part Numbers	994-1147-ND PSQ24495-91RSM-ND 994-1147
Description	RF ANT 2.4GHZ/5.4GHZ FLAT PNL
Detailed Description	2.4GHz, 5.4GHz Wi-Fi Flat Panel RF Antenna 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz 7.7dB RP-SMA Bracket Mount
Manufacturer Standard Lead Time	14 weeks

Product Attributes

Category		RF and Wireless RF Antennas
Manufacturer		TE Connectivity Laird
Series
Packaging		Bulk
Part Status		Active
Mounting Type		Bracket Mount
Frequency Range		2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz
Applications		Wi-Fi
Gain		7.7dB
Termination		RP-SMA
Ingress Protection		IP67
Number of Bands		2
VSWR		2
Antenna Type		Flat Panel
Height (Max)		1.575" (40.00mm)
Frequency Group		UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)		2.4GHz, 5.4GHz
RF Family/Standard		WiFi
Power - Max		10 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PSQ24495-91RSM
Datasheets		PSQ24495-91RSM

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		5A991B
HTSUS		8517.71.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
