PSOT36

Part Number
PSOT36
Manufacturer Diotec Semiconductor
Other Part Numbers
4878-PSOT36-ND
4878-PSOT36
Description IC
Detailed Description 76.8V Clamp 9A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3 (TO-236)
Manufacturer Standard Lead Time 8 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Diotec Semiconductor
Series
Packaging
Bulk
Part Status Active

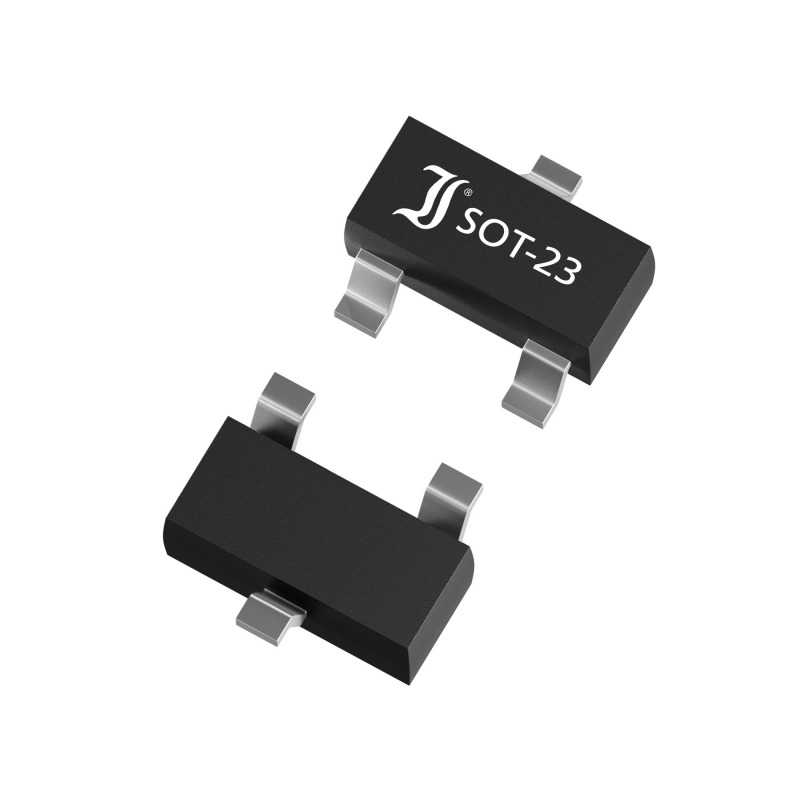

Package / Case TO-236-3, SC-59, SOT-23-3
Mounting Type Surface Mount
Type Zener
Operating Temperature -55°C ~ 150°C (TJ)
Applications General Purpose
Capacitance @ Frequency 80pF @ 1MHz
Current - Peak Pulse (10/1000µs) 9A (8/20µs)
Voltage - Reverse Standoff (Typ) 36V
Supplier Device Package SOT-23-3 (TO-236)
Unidirectional Channels 1
Voltage - Breakdown (Min) 40V
Voltage - Clamping (Max) @ Ipp 76.8V
Power - Peak Pulse 500W
Power Line Protection No

Documents & Media

RESOURCE TYPE LINK
Datasheets PSOT36
Datasheets Diotec MDS
