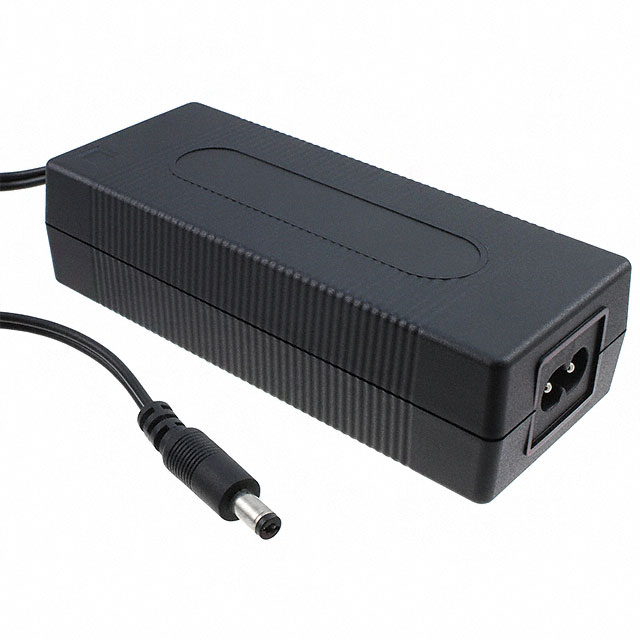

PSAC45W-480 _ AC DC Desktop, Wall Power Adapters_Power Supplies

Part Number	PSAC45W-480
Manufacturer	PHIHONG USA
Other Part Numbers	993-1289-ND 993-1289 PSAC45W-480-R
Description	AC/DC DESKTOP ADAPTER 48V 45W
Detailed Description	48V 45 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input

Category		Power Supplies - External/Internal (Off-Board) AC DC Desktop, Wall Power Adapters
Manufacturer		PHIHONG USA
Series		PSAC45W (45W)
Packaging		Box
Part Status		Obsolete
Size / Dimension		4.72" L x 1.98" W x 1.24" H (120.0mm x 50.4mm x 31.4mm)
Voltage - Output		48V
Polarization		Positive Center
Output Connector		Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm
Voltage - Input		89 ~ 270 VAC
Cord Length		59" (1.50m)
Operating Temperature		0°C ~ 40°C
Applications		ITE (Commercial)
Input Type		Cord (Sold Separately)
Approval Agency		CE, cULus
Form		Desktop (Class II)
Efficiency		Level VI
Current - Output (Max)		938mA
Input Connector		IEC 320-C8
Region Utilized		International
No Load Power Consumption		300mW (Max)
Power (Watts)		45 W

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8504.40.7001
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		RoHS Compliant

This product is no longer manufactured.
