Part Number |
PSAA60M-180
|
---|---|
Manufacturer | PHIHONG USA |
Other Part Numbers |
993-1011-ND
PSAA60M-180-R
993-1011
|

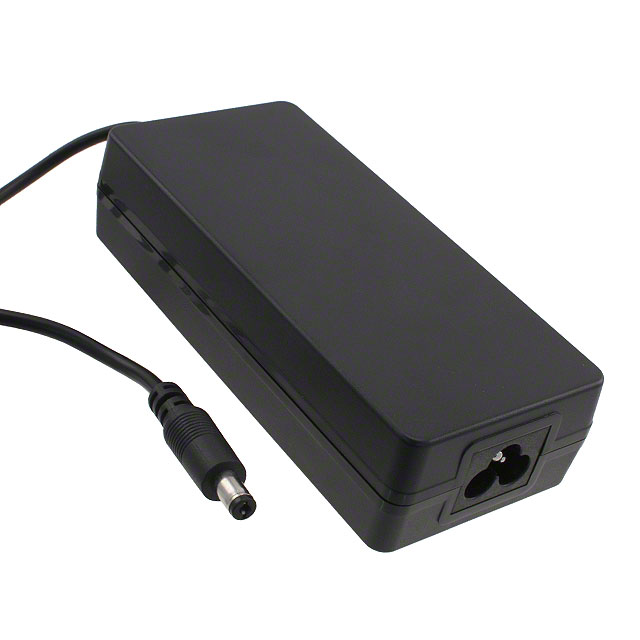

Description | AC/DC DESKTOP ADAPTER 18V 60W |
Detailed Description | 18V 60 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | PHIHONG USA | |
Series |
PSAA60M (60W)
|
|
Packaging |
Box
|
|
Part Status | Obsolete | |
Size / Dimension | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | |
Voltage - Output | 18V | |
Polarization | Positive Center | |
Output Connector | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | |
Voltage - Input | 100 ~ 240 VAC | |
Cord Length | 47.2" (1.20m) | |
Weight | 0.662 lb (300.28 g) | |
Operating Temperature | 0°C ~ 40°C | |
Applications | ITE (Commercial) | |
Input Type | Cord (Sold Separately) | |
Approval Agency | CE, cULus, TUVgs | |
Form | Desktop (Class I) | |
Efficiency | Level V | |
Current - Output (Max) | 3.3A | |
Input Connector | IEC 320-C6 | |
Region Utilized | International | |
No Load Power Consumption | 500mW (Max) | |
Power (Watts) | 60 W |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | PSAA60M-180 | |
Datasheets | Installation Manual |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8504.40.9520 | |
Moisture Sensitivity Level (MSL) | Not Applicable | |
REACH Status | REACH Unaffected |
