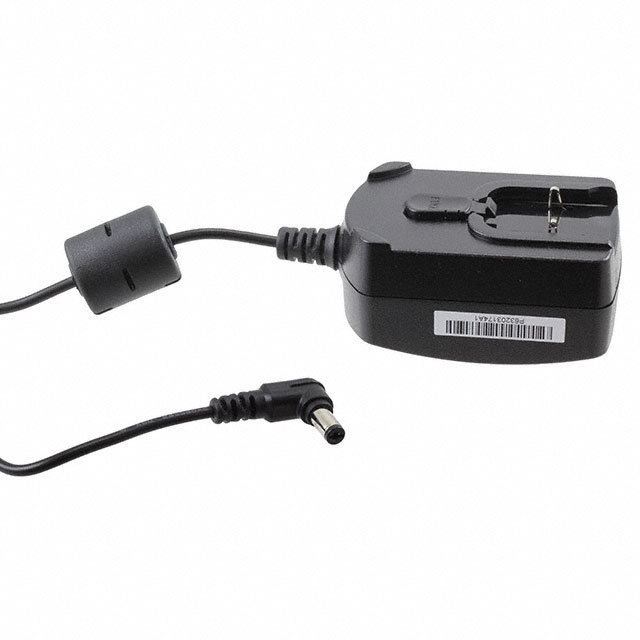

PSAA20R-120L6-R-CR1 _ AC DC Desktop, Wall Power Adapters_Power Supplies

Part Number	PSAA20R-120L6-R-CR1
Manufacturer	PHIHONG USA
Other Part Numbers	993-1381-ND PSAA20R-120L6-CR1 993-1381
Description	AC/DC WALL MOUNT ADAPTER 12V 20W
Detailed Description	12V 20 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input

Category		Power Supplies - External/Internal (Off-Board) AC DC Desktop, Wall Power Adapters
Manufacturer		PHIHONG USA
Series		PSAA20R-L6 (20W)
Packaging		Box
Part Status		Obsolete
Size / Dimension		2.82" L x 1.97" W x 1.54" H (71.7mm x 50.0mm x 39.1mm)
Voltage - Output		12V
Polarization		Positive Center
Output Connector		Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 10.0mm
Voltage - Input		90 ~ 264 VAC
Cord Length		59" (1.50m)
Weight		0.397 lb (180.08 g)
Operating Temperature		0°C ~ 40°C
Applications		ITE (Commercial)
Input Type		Multi-Blade (Sold Separately)
Approval Agency		AS/NZS, BSMI, cULus, IEC, PSE
Form		Wall Mount (Class II)
Efficiency		Level VI
Current - Output (Max)		1.67A
Input Connector		Multi-Blade
Region Utilized		International
No Load Power Consumption		10mW (Max)
Power (Watts)		20 W
Standard Number		60950-1

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8504.40.9510
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		RoHS Compliant

This product is no longer manufactured.
