PS9814-2-F4-A _ Logic Output Optoisolators_Optoisolators_Isolators

Part Number	PS9814-2-F4-A
Manufacturer	CEL (California Eastern Laboratories)
Other Part Numbers	PS9814-2-F4-A-ND
Description	OPTOISO 2.5KV 2CH OPEN COL 8SSOP
Detailed Description	Logic Output Optoisolator 10Mbps Open Collector 2500Vrms 2 Channel 10kV/µs CMTI 8-SSOP
Datasheet	Datasheet

Category		Isolators Optoisolators Logic Output Optoisolators
Manufacturer		CEL (California Eastern Laboratories)
Series
Packaging		Tape & Reel (TR)
Part Status		Obsolete

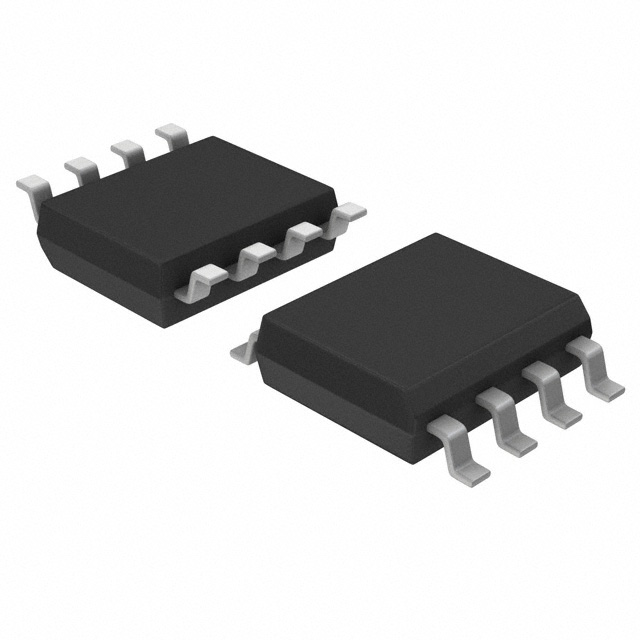

Package / Case		8-SOIC (0.154", 3.90mm Width)
Output Type		Open Collector
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		4.5V ~ 5.5V
Voltage - Forward (Vf) (Typ)		1.65V
Data Rate		10Mbps
Input Type		DC
Voltage - Isolation		2500Vrms
Current - DC Forward (If) (Max)		15mA
Inputs - Side 1/Side 2		2/0
Supplier Device Package		8-SSOP
Rise / Fall Time (Typ)		20ns, 10ns
Common Mode Transient Immunity (Min)		10kV/µs
Propagation Delay tpLH / tpHL (Max)		75ns, 75ns
Number of Channels		2
Current - Output / Channel		25 mA

RESOURCE TYPE		LINK
Datasheets		Optocoupler Design Guide

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected

This product is no longer manufactured.
