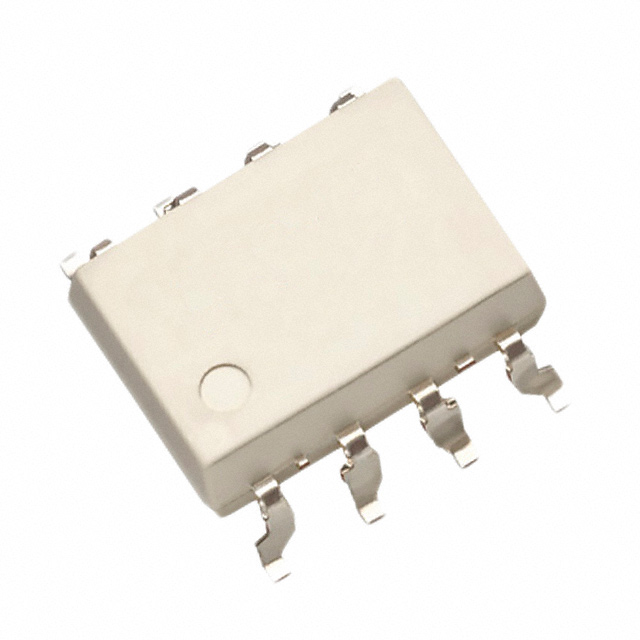

PS9531-V-AX _ Isolators - Gate Drivers_Isolators

Part Number	PS9531-V-AX
Manufacturer	CEL (California Eastern Laboratories)
Other Part Numbers	PS9531-V-AX-ND
Description	OPTOISO 5KV 1CH GATE DVR 8DIP
Detailed Description	2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 8-DIP

Category		Isolators Isolators - Gate Drivers
Manufacturer		CEL (California Eastern Laboratories)
Series
Packaging		Tube
Part Status		Discontinued
Package / Case		8-DIP (0.300", 7.62mm)
Mounting Type		Through Hole
Operating Temperature		-40°C ~ 125°C
Voltage - Forward (Vf) (Typ)		1.56V
Current - Peak Output		2.5A
Technology		Optical Coupling
Current - Output High, Low		2A, 2A
Voltage - Isolation		5000Vrms
Approval Agency		CSA, SEMKO, UL, VDE
Supplier Device Package		8-DIP
Rise / Fall Time (Typ)		40ns, 40ns
Common Mode Transient Immunity (Min)		50kV/µs
Propagation Delay tpLH / tpHL (Max)		175ns, 175ns
Pulse Width Distortion (Max)		75ns
Number of Channels		1
Current - DC Forward (If) (Max)		25 mA
Voltage - Output Supply		15V ~ 30V

RESOURCE TYPE		LINK
Datasheets		PS9531-V-AX
Datasheets		Optocoupler Design Guide
Datasheets		EU RoHS Certificate
Datasheets		Coupler/Diode Supply Transition 1/Aug/2018

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

This product is no longer for sale.
