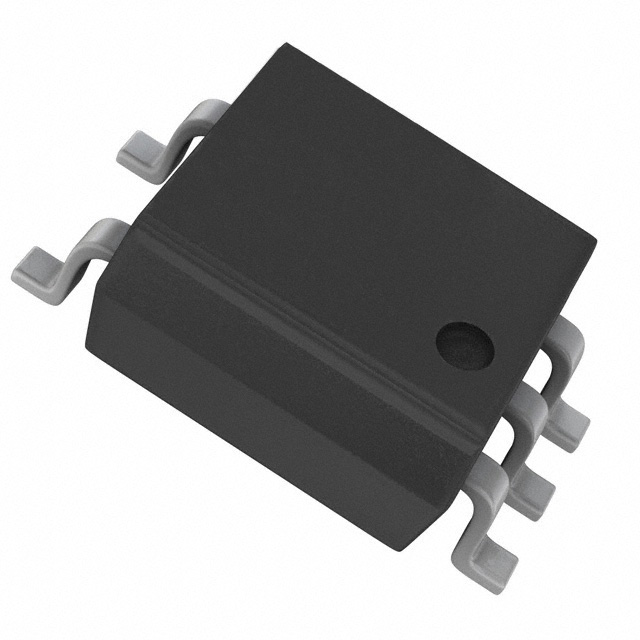

PS9124-V-F3-AX _ Logic Output Optoisolators_Optoisolators_Isolators

Part Number	PS9124-V-F3-AX
Manufacturer	CEL (California Eastern Laboratories)
Other Part Numbers	PS9124-V-F3-AXTR-ND PS9124-V-F3-AXTR
Description	OPTOISO 3.75KV OPEN COLL 5SOP
Detailed Description	Logic Output Optoisolator 10Mbps Open Collector 3750Vrms 1 Channel 10kV/µs CMTI 5-SO

Category		Isolators Optoisolators Logic Output Optoisolators
Manufacturer		CEL (California Eastern Laboratories)
Series
Packaging		Tape & Reel (TR)
Part Status		Discontinued
Package / Case		6-SOIC (0.173", 4.40mm Width), 5 Leads
Output Type		Open Collector
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 100°C
Voltage - Supply		2.7V ~ 3.6V, 4.5V ~ 5.5V
Voltage - Forward (Vf) (Typ)		1.55V
Data Rate		10Mbps
Input Type		DC
Voltage - Isolation		3750Vrms
Current - DC Forward (If) (Max)		25mA
Inputs - Side 1/Side 2		1/0
Supplier Device Package		5-SO
Rise / Fall Time (Typ)		20ns, 5ns
Common Mode Transient Immunity (Min)		10kV/µs
Propagation Delay tpLH / tpHL (Max)		75ns, 75ns
Number of Channels		1
Current - Output / Channel		25 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer for sale.
