PS9117A-AX _ Logic Output Optoisolators_Optoisolators_Isolators

Part Number	PS9117A-AX
Manufacturer	CEL (California Eastern Laboratories)
Other Part Numbers	PS9117A-AX-ND PS9117AAX
Description	OPTOISO 3.75KV OPN COLLECTOR 5SO
Detailed Description	Logic Output Optoisolator 10Mbps Open Collector 3750Vrms 1 Channel 15kV/µs CMTI 5-SO
Datasheet	Datasheet

Category		Isolators Optoisolators Logic Output Optoisolators
Manufacturer		CEL (California Eastern Laboratories)
Series		NEPOC
Packaging		Bulk
Part Status		Discontinued

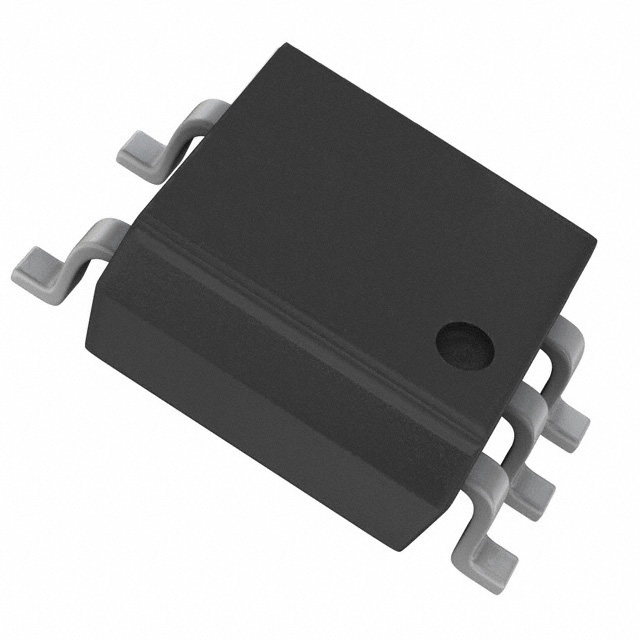

Package / Case		6-SOIC (0.173", 4.40mm Width), 5 Leads
Output Type		Open Collector
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		4.5V ~ 5.5V
Voltage - Forward (Vf) (Typ)		1.65V
Data Rate		10Mbps
Input Type		DC
Voltage - Isolation		3750Vrms
Current - DC Forward (If) (Max)		30mA
Inputs - Side 1/Side 2		1/0
Supplier Device Package		5-SO
Rise / Fall Time (Typ)		20ns, 5ns
Common Mode Transient Immunity (Min)		15kV/µs
Propagation Delay tpLH / tpHL (Max)		75ns, 75ns
Number of Channels		1
Current - Output / Channel		25 mA

RESOURCE TYPE		LINK
Datasheets		Optocoupler Design Guide
Datasheets		EU RoHS Certificate
Datasheets		Coupler/Diode Supply Transition 1/Aug/2018

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer for sale.
