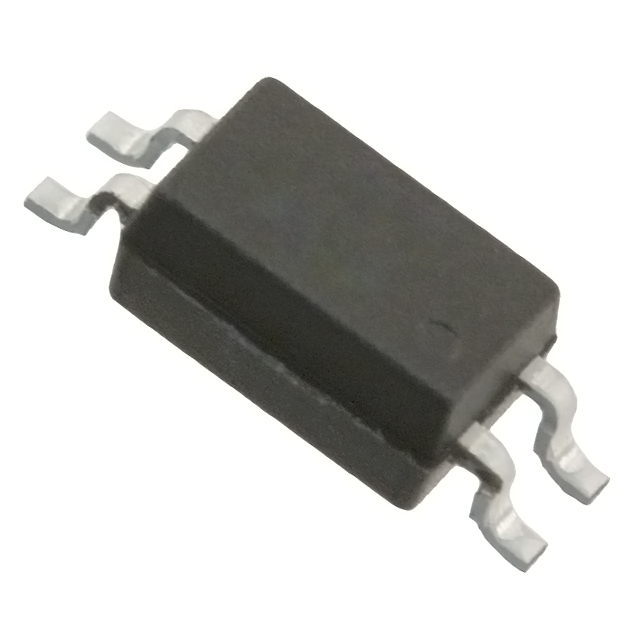

PS2805A-1-A _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	PS2805A-1-A
Manufacturer	CEL (California Eastern Laboratories)
Other Part Numbers	PS2805A-1-ND PS2805A1A PS2805A-1
Description	OPTOISOLATOR 2.5KV TRANS 4SMD
Detailed Description	Optoisolator Transistor Output 2500Vrms 1 Channel 4-SSOP
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		CEL (California Eastern Laboratories)
Series		NEPOC
Packaging		Strip
Part Status		Discontinued
Package / Case		4-SOIC (0.173", 4.40mm Width)
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.2V
Input Type		AC, DC
Current - Output / Channel		30mA
Voltage - Isolation		2500Vrms
Current Transfer Ratio (Min)		50% @ 5mA
Vce Saturation (Max)		300mV
Current Transfer Ratio (Max)		400% @ 5mA
Supplier Device Package		4-SSOP
Voltage - Output (Max)		70V
Rise / Fall Time (Typ)		5µs, 7µs
Number of Channels		1
Current - DC Forward (If) (Max)		30 mA

RESOURCE TYPE		LINK
Datasheets		PS2805A-1-A
Datasheets		Optocouplers + SSR Brochure
Datasheets		EU RoHS Certificate
Datasheets		Mult Dev Supply Chgs 4/Dec/2020
Datasheets		Coupler/Diode Supply Transition 1/Aug/2018
Datasheets		PS2505-1 Schematic

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer for sale.
