PS2801-1-F3-P-A _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

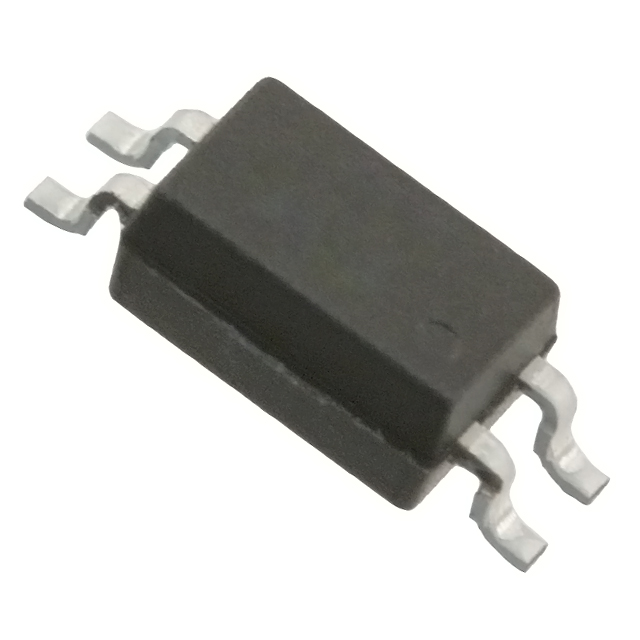

Part Number	PS2801-1-F3-P-A
Manufacturer	CEL (California Eastern Laboratories)
Other Part Numbers	PS2801-1-F3-P-ATR-ND PS2801-1-F3-P-ACT-ND PS2801-1-F3-P-ADKR-ND PS2801-1-F3-P-A-ND PS2801-1-F3-P-ATR PS2801-1-F3-P-ACT PS28011F3PA PS2801-1-F3-P-ADKR
Description	OPTOISOLATOR 2.5KV TRANS 4-SSOP
Detailed Description	Optoisolator Transistor Output 2500Vrms 1 Channel 4-SSOP
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		CEL (California Eastern Laboratories)
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Discontinued
Package / Case		4-SOIC (0.173", 4.40mm Width)
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.1V
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		2500Vrms
Current Transfer Ratio (Min)		150% @ 5mA
Vce Saturation (Max)		300mV
Current Transfer Ratio (Max)		300% @ 5mA
Supplier Device Package		4-SSOP
Voltage - Output (Max)		80V
Turn On / Turn Off Time (Typ)		6µs, 5µs
Rise / Fall Time (Typ)		3µs, 5µs
Number of Channels		1
Current - DC Forward (If) (Max)		50 mA

RESOURCE TYPE		LINK
Datasheets		Optocoupler Design Guide
Datasheets		EU RoHS Certificate
Datasheets		Mult Dev Supply Chgs 4/Dec/2020
Datasheets		Coupler/Diode Supply Transition 1/Aug/2018

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer for sale.
