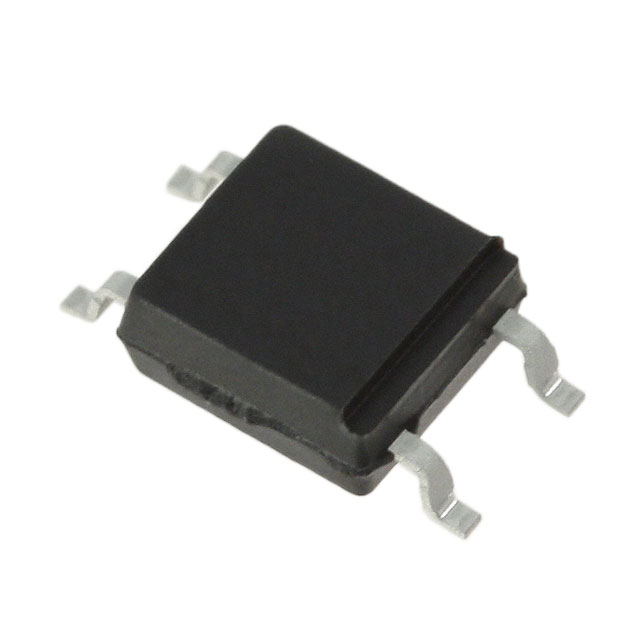

PS2761B-1-V-F3-K-A _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	PS2761B-1-V-F3-K-A
Manufacturer	CEL (California Eastern Laboratories)
Other Part Numbers	PS2761B-1-V-F3-K-ATR-ND PS2761B-1-V-F3-K-ATR PS2761B-1-V-F3-K-ADKR PS2761B1VF3KA PS2761B-1-V-F3-K-ACT
Description	OPTOISOLATOR 3.75KV TRANS 4SMD
Detailed Description	Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		CEL (California Eastern Laboratories)
Series		NEPOC
Packaging		Tape & Reel (TR)
Part Status		Discontinued
Package / Case		4-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 110°C
Voltage - Forward (Vf) (Typ)		1.1V
Input Type		DC
Current - Output / Channel		40mA
Voltage - Isolation		3750Vrms
Current Transfer Ratio (Min)		200% @ 5mA
Vce Saturation (Max)		300mV
Current Transfer Ratio (Max)		400% @ 5mA
Supplier Device Package		4-SOP
Voltage - Output (Max)		70V
Rise / Fall Time (Typ)		4µs, 5µs
Number of Channels		1
Current - DC Forward (If) (Max)		25 mA

RESOURCE TYPE		LINK
Datasheets		PS2761B-1-V-F3-K-A
Datasheets		Optocoupler Design Guide
Datasheets		Optocouplers + SSR Brochure
Datasheets		EU RoHS Certificate
Datasheets		Mult Dev Supply Chgs 4/Dec/2020
Datasheets		Coupler/Diode Supply Transition 1/Aug/2018

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer for sale.
