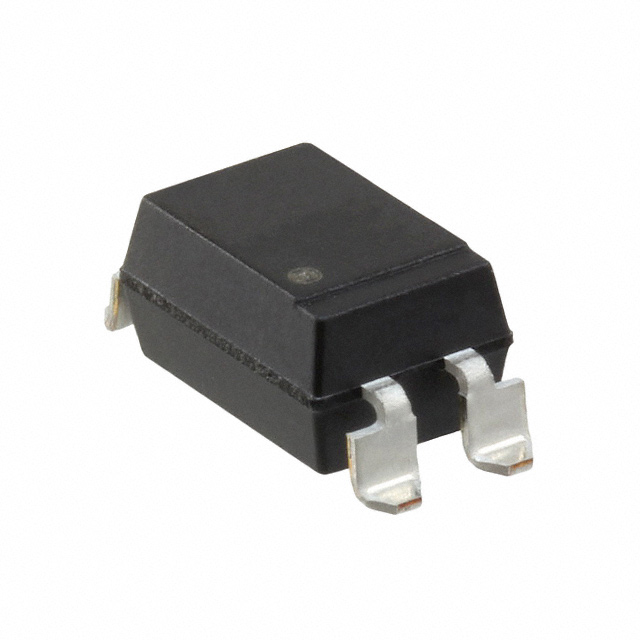

PS2562L-1-F3-A _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	PS2562L-1-F3-A
Manufacturer	CEL (California Eastern Laboratories)
Other Part Numbers	PS2562L-1TR-ND PS2562L-1CT-ND PS2562L-1DKR-ND PS2562L-1CT PS2562L-1TR PS2562L-1DKR
Description	OPTOISOLATOR 5KV DARL 4SMD
Detailed Description	Optoisolator Darlington Output 5000Vrms 1 Channel 4-SMD
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		CEL (California Eastern Laboratories)
Series		NEPOC
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Discontinued
Package / Case		4-SMD, Gull Wing
Output Type		Darlington
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.17V
Input Type		DC
Current - Output / Channel		200mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		200% @ 1mA
Vce Saturation (Max)		1V
Supplier Device Package		4-SMD
Voltage - Output (Max)		40V
Rise / Fall Time (Typ)		100µs, 100µs
Number of Channels		1
Current - DC Forward (If) (Max)		80 mA

RESOURCE TYPE		LINK
Datasheets		Optocoupler Design Guide
Datasheets		EU RoHS Certificate
Datasheets		Mult Dev Supply Chgs 4/Dec/2020
Datasheets		Coupler/Diode Supply Transition 1/Aug/2018

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer for sale.
