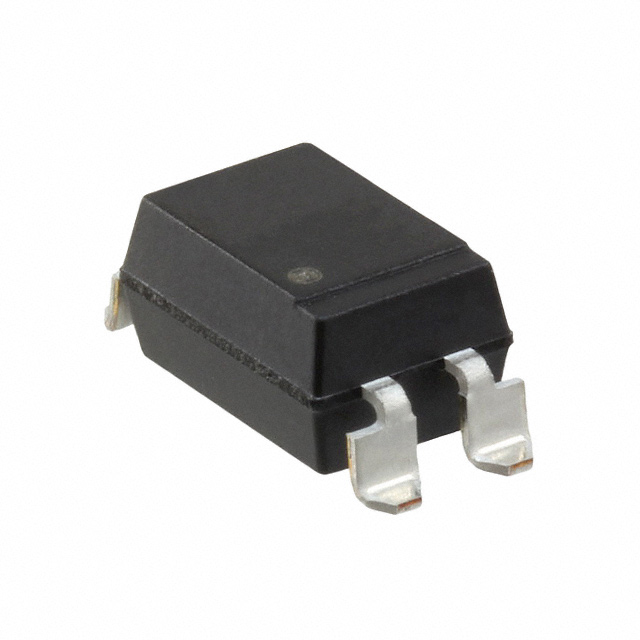

Part Number	PS2561FL-1Y-K-A
Manufacturer	CEL (California Eastern Laboratories)
Other Part Numbers	PS2561FL-1Y-K-A-ND PS2561FL1YKA
Description	OPTOISOLATOR 5KV TRANS 4SMD
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		CEL (California Eastern Laboratories)
Series
Packaging		Bulk
Part Status		Discontinued
Package / Case		4-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 110°C
Voltage - Forward (Vf) (Typ)		1.2V
Input Type		DC
Current - Output / Channel		50mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		300% @ 5mA
Vce Saturation (Max)		300mV
Current Transfer Ratio (Max)		600% @ 5mA
Supplier Device Package		4-SMD
Voltage - Output (Max)		80V
Rise / Fall Time (Typ)		5µs, 7µs
Number of Channels		1
Current - DC Forward (If) (Max)		30 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer for sale.
