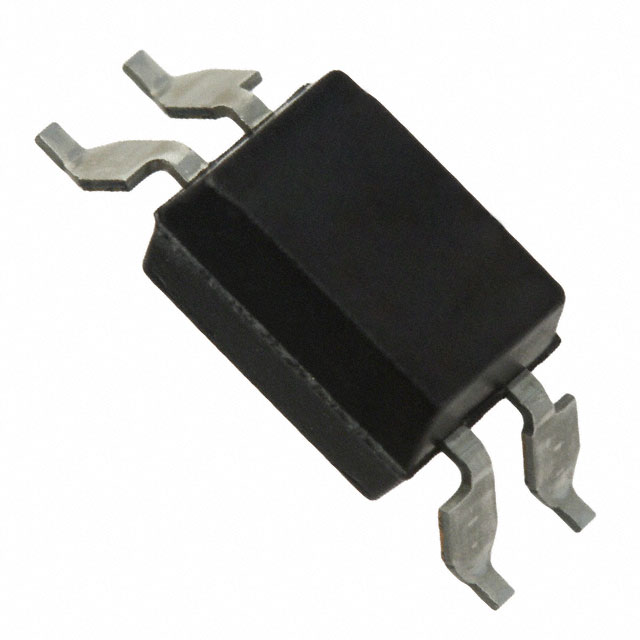

PS2561AL2-1-F3-A _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	PS2561AL2-1-F3-A
Manufacturer	CEL (California Eastern Laboratories)
Other Part Numbers	PS2561AL2-1-F3-A-ND
Description	OPTOISOLATOR TRANS 4SMD GW
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		CEL (California Eastern Laboratories)
Series		NEPOC
Packaging		Tape & Reel (TR)
Part Status		Discontinued
Package / Case		4-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.2V
Input Type		DC
Current - Output / Channel		30mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		50% @ 5mA
Vce Saturation (Max)		300mV
Current Transfer Ratio (Max)		400% @ 5mA
Supplier Device Package		4-SMD
Voltage - Output (Max)		70V
Rise / Fall Time (Typ)		3µs, 5µs
Number of Channels		1
Current - DC Forward (If) (Max)		30 mA

RESOURCE TYPE		LINK
Datasheets		PS2561AL2-1-F3-A
Datasheets		Optocoupler Design Guide
Datasheets		EU RoHS Certificate
Datasheets		Mult Dev Supply Chgs 4/Dec/2020
Datasheets		Coupler/Diode Supply Transition 1/Aug/2018

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer for sale.
