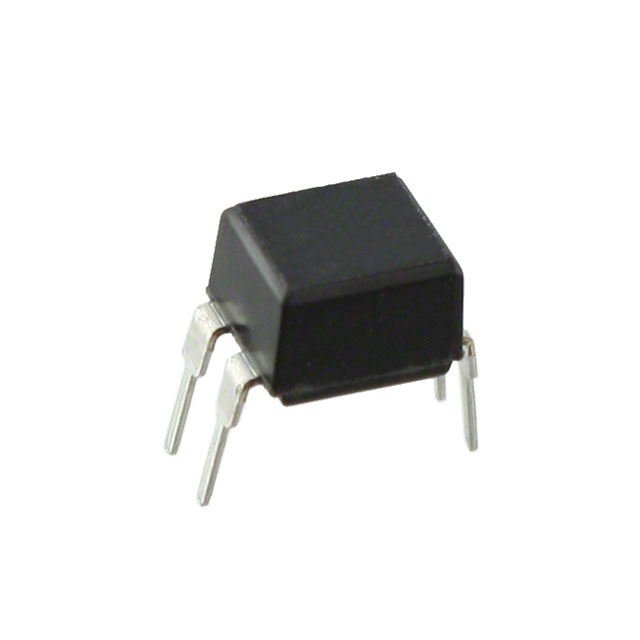

PS2561A-1-H-V-A _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

Part Number	PS2561A-1-H-V-A
Manufacturer	CEL (California Eastern Laboratories)
Other Part Numbers	PS2561A-1-H-V-A-ND
Description	OPTOISOLATOR 5KV TRANS 4DIP
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Datasheet	Datasheet

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		CEL (California Eastern Laboratories)
Series		NEPOC
Packaging		Tube
Part Status		Obsolete
Package / Case		4-DIP (0.300", 7.62mm)
Output Type		Transistor
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.2V
Input Type		DC
Current - Output / Channel		30mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		80% @ 5mA
Vce Saturation (Max)		300mV
Current Transfer Ratio (Max)		160% @ 5mA
Supplier Device Package		4-DIP
Voltage - Output (Max)		70V
Rise / Fall Time (Typ)		3µs, 5µs
Number of Channels		1
Current - DC Forward (If) (Max)		30 mA

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected

This product is no longer manufactured.
