PS2503L-1 _ Transistor, Photovoltaic Output Optoisolators_Optoisolators_Isolators

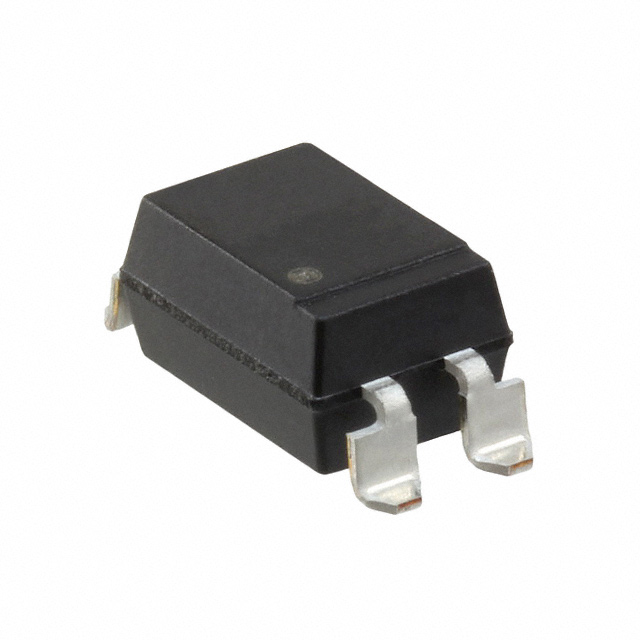

Part Number	PS2503L-1
Manufacturer	CEL (California Eastern Laboratories)
Other Part Numbers	PS2503L-1-ND Q1699488
Description	OPTOISOLATOR 5KV TRANS 4SMD
Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD

Category		Isolators Optoisolators Transistor, Photovoltaic Output Optoisolators
Manufacturer		CEL (California Eastern Laboratories)
Series		NEPOC
Packaging		Tube
Part Status		Obsolete
Package / Case		4-SMD, Gull Wing
Output Type		Transistor
Mounting Type		Surface Mount
Operating Temperature		-55°C ~ 100°C
Voltage - Forward (Vf) (Typ)		1.1V
Input Type		DC
Current - Output / Channel		30mA
Voltage - Isolation		5000Vrms
Current Transfer Ratio (Min)		100% @ 1mA
Vce Saturation (Max)		250mV
Current Transfer Ratio (Max)		400% @ 1mA
Supplier Device Package		4-SMD
Voltage - Output (Max)		40V
Rise / Fall Time (Typ)		20µs, 30µs
Number of Channels		1
Current - DC Forward (If) (Max)		80 mA

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.49.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant

This product is no longer manufactured.
