PS15V

Part Number
PS15V
Manufacturer Tycon Systems Inc.
Other Part Numbers
2303-PS15V-ND
2303-PS15V

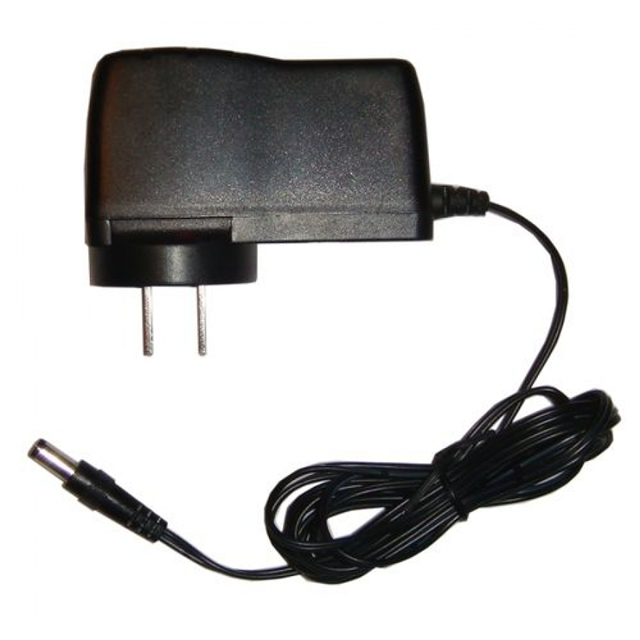

Description AC/DC WALL MOUNT ADAPTER 15V 14W
Detailed Description 15V 14 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
Datasheet Datasheet

Product Attributes

Category
Manufacturer Tycon Systems Inc.
Series
PS
Packaging
Box
Part Status Obsolete
Size / Dimension 2.90" L x 1.65" W x 1.20" H (73.7mm x 41.9mm x 30.5mm)
Voltage - Output 15V
Polarization Positive Center
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Voltage - Input 100 ~ 264 VAC
Cord Length 70.9" (1.80m)
Operating Temperature -10°C ~ 40°C
Applications ITE (Commercial)
Input Type Fixed Blade
Form Wall Mount (Class II)
Efficiency 78%
Current - Output (Max) 900mA
Input Connector NEMA 1-15P
Region Utilized North America
Power (Watts) 14 W

Documents & Media

RESOURCE TYPE LINK
Datasheets DK OBS NOTICE

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.40.9510
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
