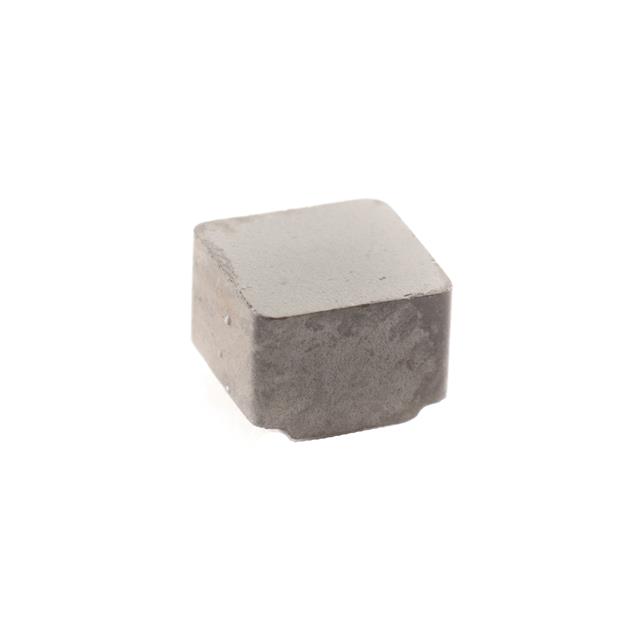

PS10-102K-RC

PS10-102K-RC

Part Number	PS10-102K-RC
Manufacturer	Allied Components International
Other Part Numbers	3475-PS10-102K-RCTR-ND 3475-PS10-102K-RCTR
Description	1000uH +/-10% Power Inductor
Detailed Description	1 mH Shielded Wirewound Inductor 29.2Ohm Max 1515 (4040 Metric)
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Allied Components International
Series		PS10
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±10%
Package / Case		1515 (4040 Metric)
Size / Dimension		0.150" L x 0.150" W (3.81mm x 3.81mm)
Mounting Type		Surface Mount
Shielding		Shielded
Type		Wirewound
Operating Temperature		-25°C ~ 85°C
DC Resistance (DCR)		29.2Ohm Max
Q @ Freq		20 @ 1MHz
Frequency - Self Resonant		1.5MHz
Current - Saturation (Isat)		100mA
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.116" (2.94mm)
Inductance		1 mH

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PS10-102K-RC

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH info available upon request
RoHS Status		RoHS Compliant
