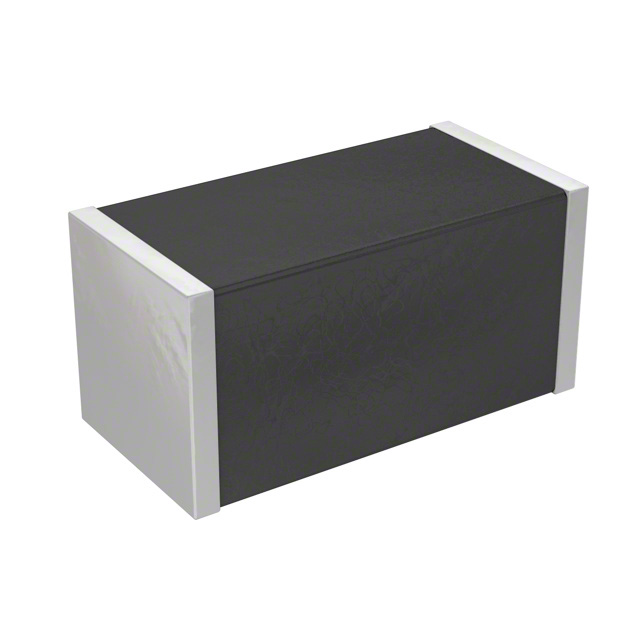

PRG18BC3R3MM1RB _ PTC Resettable Fuses_Circuit Protection_

+86-0755-8325-4547

PRG18BC3R3MM1RB

PRG18BC3R3MM1RB

Part Number	PRG18BC3R3MM1RB
Manufacturer	TOKO / Murata
Other Part Numbers	490-8506-2-ND 490-8506-1-ND 490-8506-6-ND 490-8506-1 490-8506-2 PRG18BC3R3MM1RB-ND 490-8506-6
Description	PTC RESET FUSE 16V 180MA 0603
Detailed Description	Ceramic PTC Resettable Fuse 16V 180 mA Ih Surface Mount 0603 (1608 Metric)
Manufacturer Standard Lead Time	21 weeks
Datasheet	Datasheet

Product Attributes

Category		Circuit Protection PTC Resettable Fuses
Manufacturer		TOKO / Murata
Series		POSISTOR®, PRG
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		0603 (1608 Metric)
Size / Dimension		0.063" L x 0.032" W (1.60mm x 0.80mm)
Mounting Type		Surface Mount
Type		Ceramic
Operating Temperature		-20°C ~ 85°C
Approval Agency		UL
Current - Hold (Ih) (Max)		180 mA
Current - Trip (It)		400 mA
Voltage - Max		16V
Thickness (Max)		0.037" (0.95mm)
Current - Max		6 A
Resistance - 25°C (Typ)		3.3 Ohms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		POSISTOR® Series Catalog

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.40.8070
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 33632

Can ship immediately.
