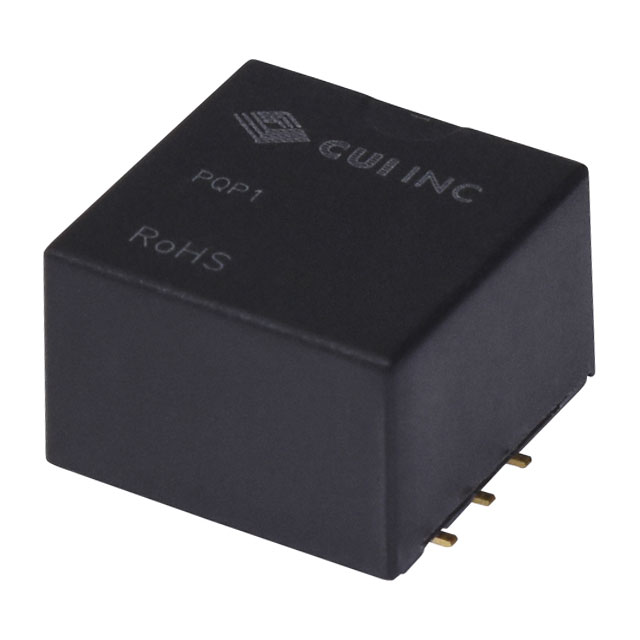

PQP1-D24-D15-M _ DC DC Converters_Power Supplies

Part Number	PQP1-D24-D15-M
Manufacturer	CUI Inc
Other Part Numbers	102-PQP1-D24-D15-M-ND 102-PQP1-D24-D15-M
Description	DC DC CONVERTER +/-15V 990MW
Detailed Description	Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 18V - 36V Input
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		CUI Inc
Series		PQP1-M
Packaging		Tube
Part Status		Active
Package / Case		8-SMD Module, 5 Leads
Size / Dimension		0.55" L x 0.55" W x 0.36" H (14.0mm x 14.0mm x 9.1mm)
Mounting Type		Surface Mount
Type		Isolated Module
Operating Temperature		-40°C ~ 85°C
Applications		ITE (Commercial)
Voltage - Input (Max)		36V
Approval Agency		CE
Efficiency		77%
Current - Output (Max)		33mA, 33mA
Voltage - Input (Min)		18V
Voltage - Output 1		15V
Voltage - Output 2		-15V
Power (Watts)		990 mW
Number of Outputs		2
Voltage - Isolation		1.5 kV

RESOURCE TYPE		LINK
Datasheets		PQP1-D24-D15-M

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

Can ship immediately.
