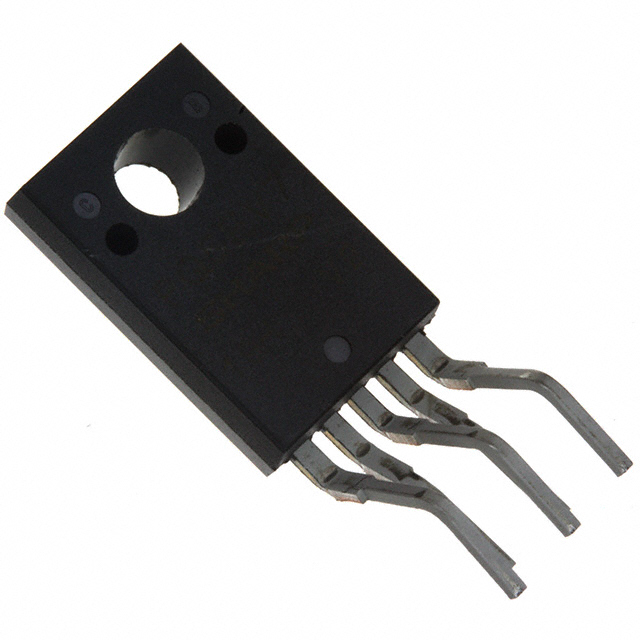

PQ5EV7J0000H _ Voltage Regulators - Linear, Low Drop Out (LDO) Regulators_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	PQ5EV7J0000H
Manufacturer	Sharp Microelectronics
Other Part Numbers	425-2351-5-ND 425-2351-5
Description	IC REG LIN POS ADJ 7.5A TO220-5
Detailed Description	Linear Voltage Regulator IC Positive Adjustable 1 Output 7.5A TO-220-5

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Manufacturer		Sharp Microelectronics
Series
Packaging		Tube
Part Status		Obsolete
Package / Case		TO-220-5 Formed Leads
Output Type		Adjustable
Mounting Type		Through Hole
Current - Output		7.5A
Operating Temperature		-20°C ~ 80°C
Output Configuration		Positive
Voltage - Input (Max)		7V
Number of Regulators		1
Supplier Device Package		TO-220-5
Voltage - Output (Max)		5V
Voltage - Output (Min/Fixed)		1.5V
Control Features		Enable
PSRR		70dB (120Hz)
Voltage Dropout (Max)		0.5V @ 7.5A
Protection Features		Over Current, Over Temperature

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)

This product is no longer manufactured.
