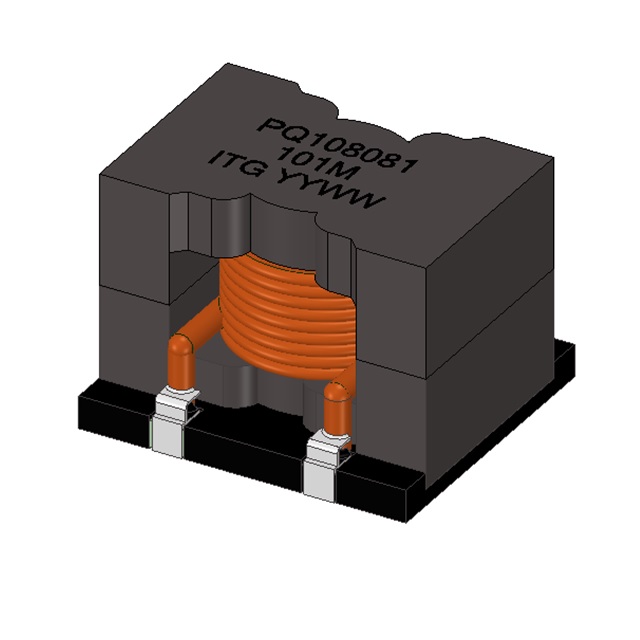

PQ108081-4R7MHF

Part Number
PQ108081-4R7MHF
Manufacturer ITG Electronics, Inc.
Other Part Numbers
3013-PQ108081-4R7MHF-ND
3013-PQ108081-4R7MHF
Description FIXED IND 4.7UH 31A 2.5 MOHM SMD
Detailed Description 4.7 µH Shielded Inductor 31 A 2.5mOhm Nonstandard, 3 Lead
Datasheet Datasheet

Product Attributes

Category
Manufacturer ITG Electronics, Inc.
Series
PQ108081
Packaging
Tray
Part Status Active
Tolerance ±20%
Package / Case Nonstandard, 3 Lead
Size / Dimension 1.098" L x 1.098" W (27.94mm x 27.94mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -55°C ~ 130°C
DC Resistance (DCR) 2.5mOhm
Material - Core Ferrite
Inductance Frequency - Test 300 kHz
Supplier Device Package 3-SMD
Height - Seated (Max) 0.787" (20.00mm)
Inductance 4.7 µH
Current Rating (Amps) 31 A

Documents & Media

RESOURCE TYPE LINK
Datasheets PQ108081-4R7MHF

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
