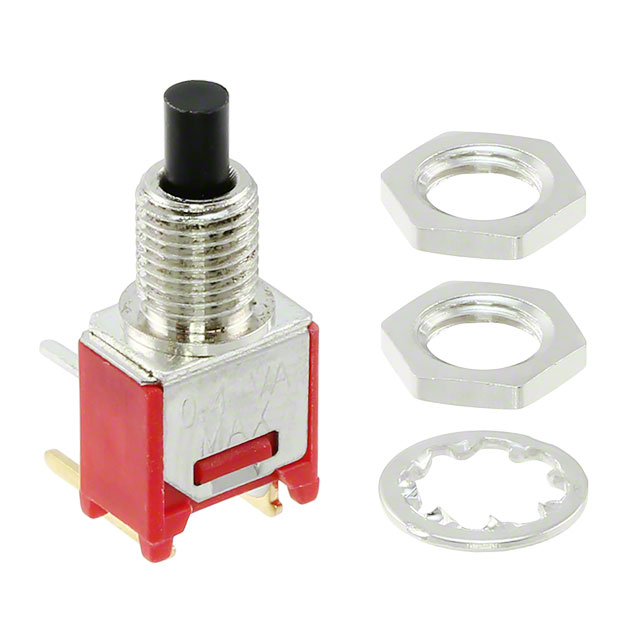

PMS9P1B05M6RE

PMS9P1B05M6RE

Part Number	PMS9P1B05M6RE
Manufacturer	TE Connectivity ALCOSWITCH Switches
Other Part Numbers	450-2079-ND 2267074-2 450-2079
Description	SWITCH PUSH SPST-NO 0.4VA 20V
Detailed Description	Pushbutton Switch SPST-NO Standard Panel Mount, Right Angle, Rear
Manufacturer Standard Lead Time	25 weeks

Product Attributes

Category		Switches Pushbutton Switches
Manufacturer		TE Connectivity ALCOSWITCH Switches
Series
Packaging		Bulk
Part Status		Active
Features		Sealed
Current Rating (Amps)		0.4VA (AC/DC)
Mounting Type		Panel Mount, Right Angle, Rear
Circuit		SPST-NO
Type		Standard
Switch Function		Off-Mom
Operating Temperature		-30°C ~ 85°C
Termination Style		PC Pin
Actuator Type		Round, Plunger
Panel Cutout Dimensions		Circular - 4.95mm Dia
Color - Actuator/Cap		Black
Actuator Marking		No Marking
Voltage Rating - AC		20 V
Voltage Rating - DC		20 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PMS9P1B05M6RE
Datasheets		2267074 (PMS9P1B05MxxE) Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

In Stock: 4

Can ship immediately.
