PMNF1-5F-C _ Spade Connectors_Terminals_Connectors, Interconnects

Part Number	PMNF1-5F-C
Manufacturer	Panduit Corporation
Other Part Numbers	298-20177-ND 07498384206 PMNF1-5F-C-ND 298-20177
Description	CONN SPADE TERM 18-22AWG M5 RED

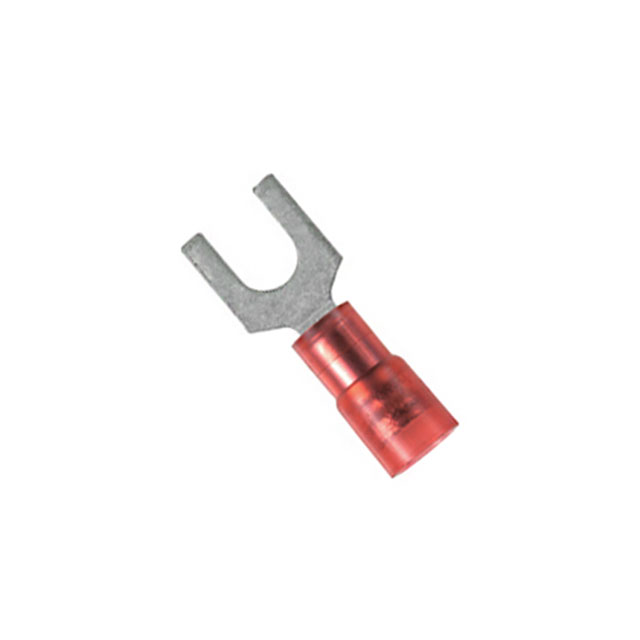

Detailed Description	Red M5 Stud Spade Terminal Connector Crimp 18-22 AWG

Category		Connectors, Interconnects Terminals Spade Connectors
Manufacturer		Panduit Corporation
Series		Pan-Term®
Packaging		Bulk
Part Status		Obsolete
Features		Serrated Termination
Contact Finish		Tin
Color		Red
Mounting Type		Free Hanging (In-Line)
Wire Gauge		18-22 AWG
Insulation		Insulated
Terminal Type		Standard
Stud/Tab Size		M5 Stud
Length - Overall		0.900" (22.86mm)
Termination		Crimp
Material - Insulation		Polyamide (PA), Nylon
Width - Outer Edges		0.350" (8.89mm)
Contact Material		Copper
Insulation Diameter		0.148" (3.76mm)
Tongue Inside Opening		0.250" (6.35mm)

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
