PM35L-048-HHC7

Part Number
PM35L-048-HHC7
Manufacturer PMDM
Other Part Numbers
942-PM35L-048-HHC7-ND
P14341
PM35L048HHC7
P14341-ND
942-PM35L-048-HHC7

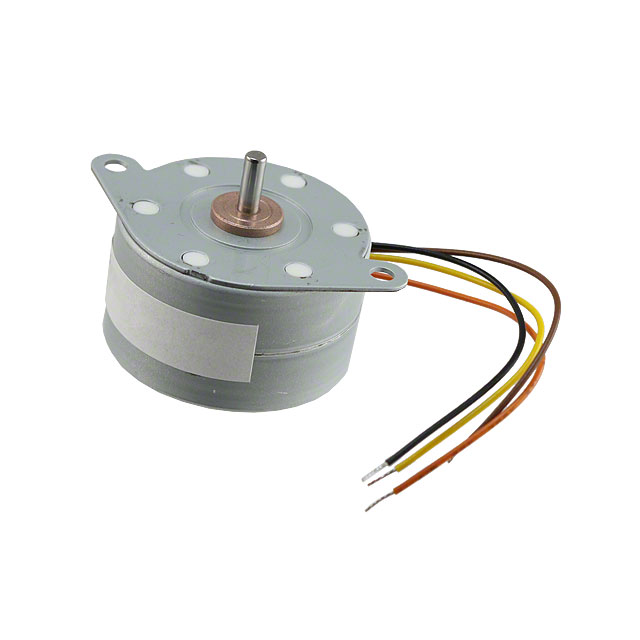

Description STEPPER MOTOR PM BIPOLAR 24V
Detailed Description Bipolar Stepper Motor Permanent Magnet Frame Size 48.0 Step 600 mA 24VDC
Manufacturer Standard Lead Time 6 weeks

Product Attributes

Category
Manufacturer PMDM
Series
PM
Packaging
Bulk
Part Status Active
Features Round Shaft
Voltage - Rated 24VDC
Size / Dimension Round - 1.378" Dia (35.00mm)
Type Permanent Magnet
Termination Style Wire Leads
Step Angle 7.5°
Torque - Holding (oz-in / mNm) 6.94 / 49
Coil Type Bipolar
Diameter - Shaft 0.118" (3.00mm)
Mounting Hole Spacing 1.650" (42.00mm)
Length - Shaft and Bearing 0.394" (10.00mm)
Current Rating (Amps) 600 mA
Coil Resistance 5.5 Ohms
Steps per Revolution 48.0

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8501.10.4040
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant

In Stock: 186

Can ship immediately.
