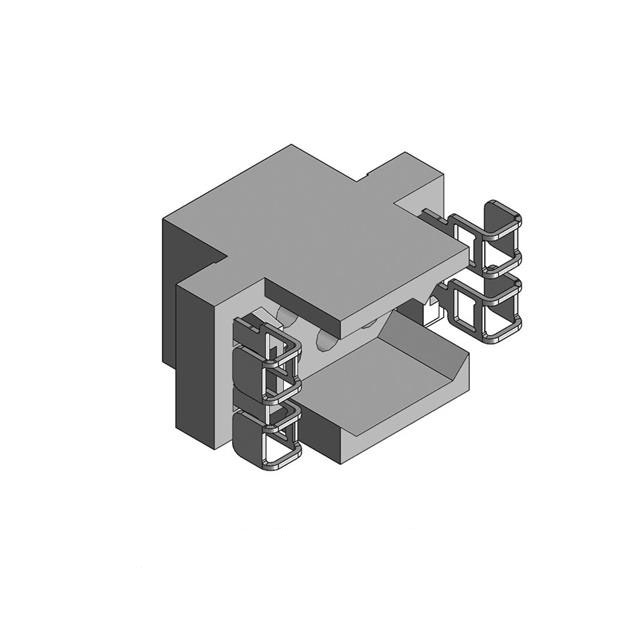

PM216MBALOO _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	PM216MBALOO
Manufacturer	Anderson Power Products
Other Part Numbers	2243-PM216MBALOO-ND 2243-PM216MBALOO
Description	POWERMOD 2X16 PIN STRAIGHT PCB 3
Detailed Description	Connector Header Through Hole 16 position 0.197" (5.00mm)
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Anderson Power Products
Series		PowerMod®
Packaging		Box
Part Status		Obsolete
Connector Type		Header
Voltage Rating		600V
Current Rating (Amps)		30A
Mounting Type		Through Hole
Number of Positions		16
Number of Rows		2
Style		Board to Board or Cable
Operating Temperature		-55°C ~ 180°C
Contact Type		Male Pin, Power
Fastening Type		Latch Lock
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.197" (5.00mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		10.0µin (0.25µm)
Contact Finish - Post		Tin Alloy
Contact Shape		Circular
Contact Length - Post		0.150" (3.81mm)
Insulation Height		0.600" (15.24mm)
Shrouding		Shrouded - 2 Wall
Insulation Material		Polyphenylene Sulfide (PPS)
Row Spacing - Mating		0.197" (5.00mm)

RESOURCE TYPE		LINK
Datasheets		PM216MBALOO
Datasheets		Anderson Power Products Rare Earth Declaration
Datasheets		Anderson Power Products Red Phosphorus
Datasheets		Anderson Power RoHS Cert
Datasheets		Mult Devs - End of Life 14/JUN/2021

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
