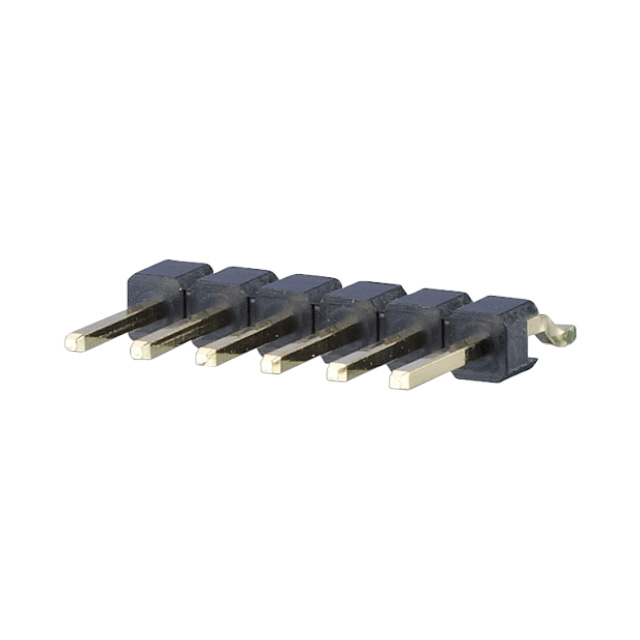

PM20206HBNN _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	PM20206HBNN
Manufacturer	RIA Connect / METZ CONNECT
Other Part Numbers	1849-PM20206HBNN-ND 1849-PM20206HBNN
Description	PIN HEADER, SMT, SINGLE ROW, .10
Detailed Description	Connector Header Surface Mount, Right Angle 6 position 0.100" (2.54mm)
Manufacturer Standard Lead Time	10 weeks

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		RIA Connect / METZ CONNECT
Series
Packaging		Bag
Part Status		Active
Connector Type		Header
Mounting Type		Surface Mount, Right Angle
Number of Positions		6
Number of Rows		1
Style		Board to Board
Operating Temperature		-40°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Contact Material		Copper Alloy
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		Flash
Contact Shape		Square
Insulation Height		0.098" (2.50mm)
Shrouding		Unshrouded
Insulation Material		Polyethylene
Contact Length - Mating		0.118" (3.00mm)

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
