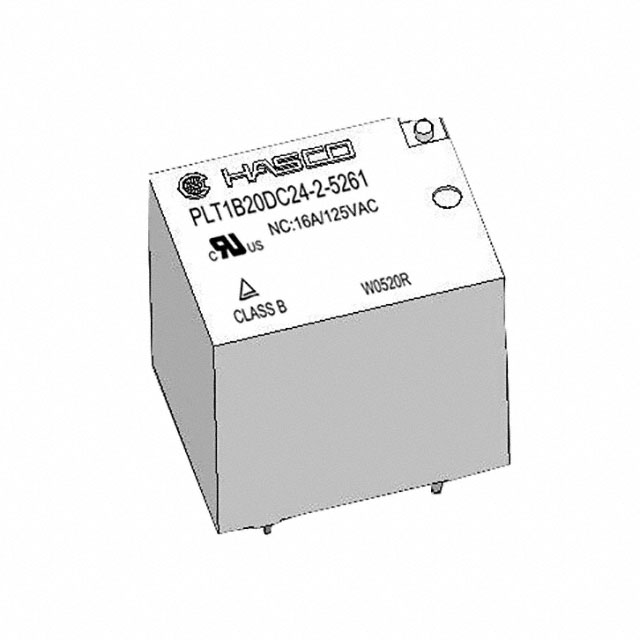

PLT1B20DC24-2-5261 _ Power Relays, Over 2 Amps_Relays

Part Number	PLT1B20DC24-2-5261
Manufacturer	Hasco Relays
Other Part Numbers	2595-PLT1B20DC24-2-5261-ND 2595-PLT1B20DC24-2-5261
Description	RELAY SPST 20A 24V
Detailed Description	Relay SPST-NC (1 Form B) 24VDC Coil Through Hole

Category		Relays Power Relays, Over 2 Amps
Manufacturer		Hasco Relays
Series		PLT
Packaging		Tube
Part Status		Active
Mounting Type		Through Hole
Coil Voltage		24VDC
Operating Temperature		-40°C ~ 85°C
Termination Style		PC Pin
Coil Current		15 mA
Coil Type		Non Latching
Contact Material		Silver Alloy
Contact Form		SPST-NC (1 Form B)
Contact Rating (Current)		20 A
Switching Voltage		277VAC - Max
Must Release Voltage		2.4 VDC
Must Operate Voltage		18 VDC
Operate Time		10 ms
Release Time		5 ms
Coil Insulation		Class B

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8531.41.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH info available upon request
RoHS Status		RoHS Compliant
