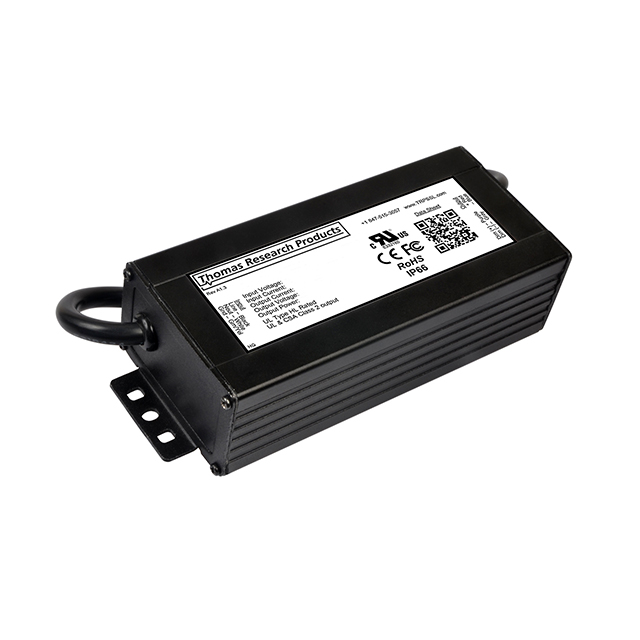

PLED60W-054-C1050-D _ LED Drivers_Power Supplies - External/Internal (Off-Board)

Part Number	PLED60W-054-C1050-D
Manufacturer	Thomas Research Products (Current Lighting)
Other Part Numbers	1121-1530-ND 93057447 1121-1530
Description	LED DRIVER CC AC/DC 18-54V 1.05A
Detailed Description	1.05A 18 ~ 54V Constant Current LED Driver AC DC Converter Topology 1 Output
Datasheet	Datasheet

Category		Power Supplies - External/Internal (Off-Board) LED Drivers
Manufacturer		Thomas Research Products (Current Lighting)
Series		PLED60W
Packaging		Box
Part Status		Obsolete
Features		OCP, OVP, SCP
Size / Dimension		5.12" L x 2.33" W x 1.47" H (130.0mm x 59.2mm x 37.3mm)
Voltage - Output		18 ~ 54V
Mounting Type		Chassis Mount
Type		Constant Current
Termination Style		Wire Leads
Voltage - Input (Max)		305VAC
Approval Agency		CE, cURus
Ratings		IP66, NEMA 6
Efficiency		88%
Topology		AC DC Converter
Current - Output (Max)		1.05A
Dimming		Analog
Voltage - Input (Min)		90VAC
Power (Watts)		60 W
Number of Outputs		1
DigiKey Programmable		Not Verified

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8504.40.9520
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

This product is no longer manufactured.
