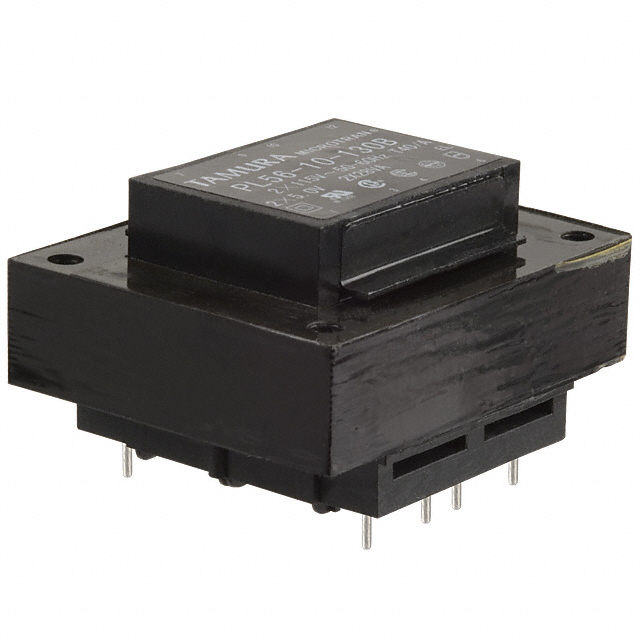

PL56-16-130B

PL56-16-130B

Part Number	PL56-16-130B
Manufacturer	Tamura
Other Part Numbers	MT3118-ND MT3118 PL56-16 PL5616130B PL56-16(BULK) PL56-16(BOX) MT3118-NDR
Description	PWR XFMR LAMINATED 56VA TH
Manufacturer Standard Lead Time	26 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Power Transformers
Manufacturer		Tamura
Series		PL56-xx-130B
Packaging		Bulk
Part Status		Active
Size / Dimension		76.20mm L x 64.00mm W
Mounting Type		Through Hole
Type		Laminated Core
Termination Style		PC Pin
Primary Winding(s)		Dual
Secondary Winding(s)		Dual
Power - Max		56VA
Voltage - Isolation		3500Vrms
Current - Output (Max)		Parallel 7A, Series 3.5A
Voltage - Primary		115V, 230V
Height - Seated (Max)		48.50mm
Voltage - Secondary (Full Load)		Parallel 8V, Series 16V
Center Tap		No

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PL56-16-130B
Datasheets		Multiple Devices Location 10/Sep/2020
Datasheets		PL(T) Series Top

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.4035
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

In Stock: 58

Can ship immediately.
