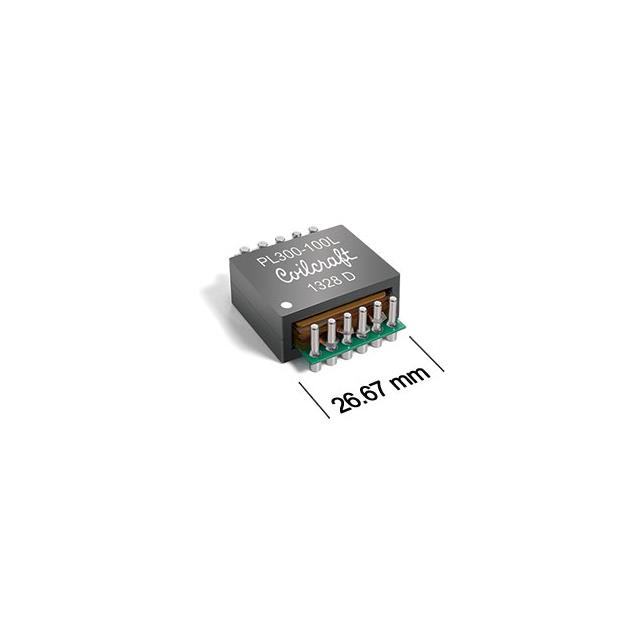

PL300-102L

Part Number
PL300-102L
Manufacturer COILCRAFT
Other Part Numbers
2457-PL300-102L-ND
2457-PL300-102L
Description PWR XFMR 300W SMD
Datasheet Datasheet

Product Attributes

Category
Manufacturer COILCRAFT
Series
PL300
Packaging
Tape & Reel (TR)
Part Status Active
Size / Dimension 29.47mm L x 26.67mm W
Mounting Type Surface Mount
Termination Style Surface Mount
Primary Winding(s) Dual
Secondary Winding(s) Single, Multiple Taps
Power - Max 300W
Voltage - Isolation 1500Vrms
Voltage - Primary 48V
Height - Seated (Max) 11.40mm
Center Tap Yes

Documents & Media

RESOURCE TYPE LINK
Datasheets PL300-102L

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.31.4035

Available To Order

PACKAGING QUANTITY UNIT PRICE EXT PRICE
{{ p.name }} {{ numberFormat(p.buyQty) }} {{ priceFormat(p.unitPrice) }} {{ priceFormat(p.totalPrice) }}
Total Amount: {{ priceFormat(quotes.total) }} (including {{ priceFormat(quotes.fee) }} fee)

{{ package.name }}

QUANTITY UNIT PRICE EXT PRICE
{{ numberFormat(price.break_quantity) }} {{ priceFormat(price.unit_price) }} {{ priceFormat(price.break_quantity * price.unit_price) }}
Detailed pricing is currently unavailable.
Detailed packaging information is temporarily unavailable.
