PIC16LF72-I/SP _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	PIC16LF72-I/SP
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	PIC16LF72-I/SP-ND PIC16LF72ISP PIC16LF72-I/SP-NDR
Description	IC MCU 8BIT 3.5KB FLASH 28SPDIP
Detailed Description	PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH 28-SPDIP
Manufacturer Standard Lead Time	7 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Roving Networks (Microchip Technology)
Series		PIC® 16F
Packaging		Tube
Part Status		Active

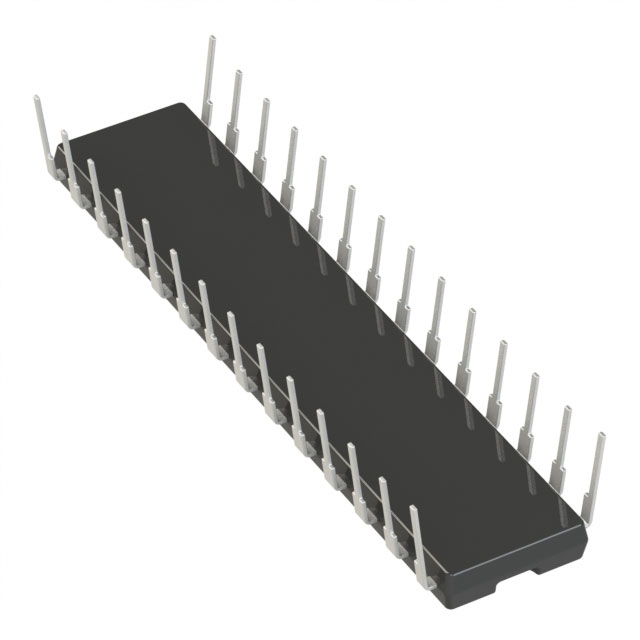

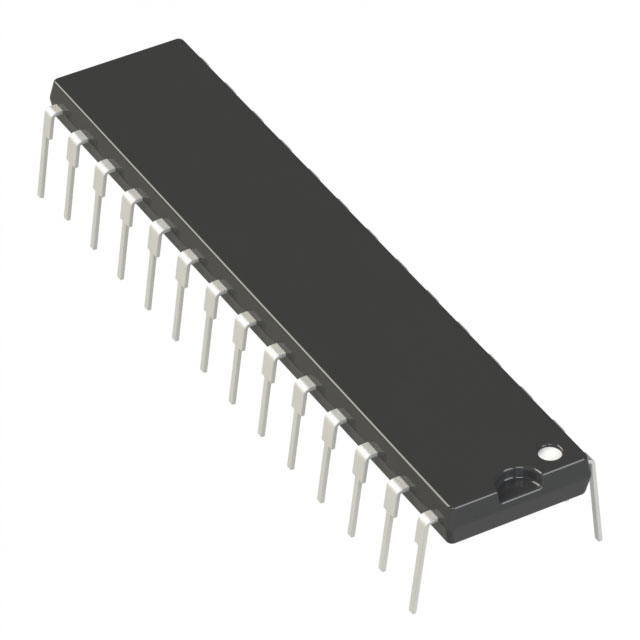

Package / Case		28-DIP (0.300", 7.62mm)
Mounting Type		Through Hole
Speed		20MHz
Program Memory Size		3.5KB (2K x 14)
RAM Size		128 x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		External
Program Memory Type		FLASH
Core Processor		PIC
Data Converters		A/D 5x8b
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		2V ~ 5.5V
Connectivity		I2C, SPI
Peripherals		Brown-out Detect/Reset, POR, PWM, WDT
Supplier Device Package		28-SPDIP
Number of I/O		22
DigiKey Programmable		Verified

RESOURCE TYPE		LINK
Datasheets		PIC16LF72-I/SP
Datasheets		Microchip RoHS
Datasheets		Microchip REACH
Datasheets		Qualification Revision 18/Dec/2013
Datasheets		Label and Packing Changes 23/Sep/2015
Datasheets		Packing Changes 10/Oct/2016
Datasheets		SSP Module Errata

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
