PIC16LC56A-04/P _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	PIC16LC56A-04/P
Manufacturer	Roving Networks (Microchip Technology)
Other Part Numbers	PIC16LC56A-04/P-ND PIC16LC56A-04/P-NDR
Description	IC MCU 8BIT 1.5KB OTP 18DIP
Detailed Description	PIC PIC® 16C Microcontroller IC 8-Bit 4MHz 1.5KB (1K x 12) OTP 18-PDIP
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Roving Networks (Microchip Technology)
Series		PIC® 16C
Packaging		Tube
Part Status		Active

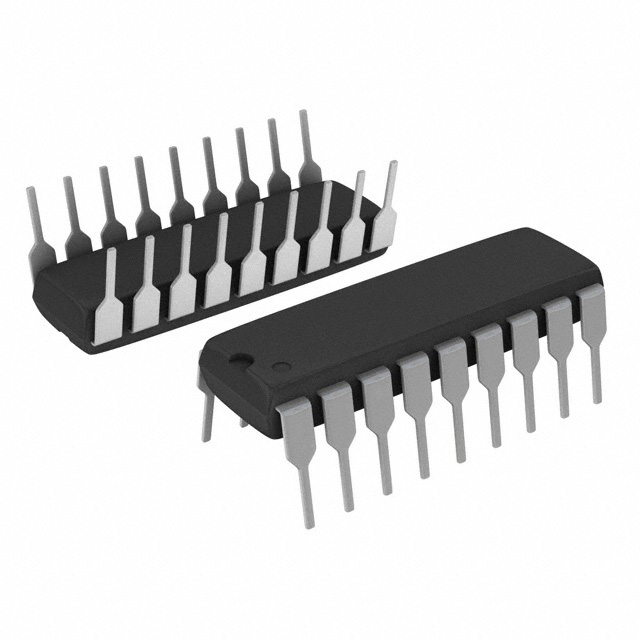

Package / Case		18-DIP (0.300", 7.62mm)
Mounting Type		Through Hole
Speed		4MHz
Program Memory Size		1.5KB (1K x 12)
RAM Size		25 x 8
Operating Temperature		0°C ~ 70°C (TA)
Oscillator Type		External
Program Memory Type		OTP
Core Processor		PIC
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		2.5V ~ 5.5V
Peripherals		POR, WDT
Supplier Device Package		18-PDIP
Number of I/O		12
DigiKey Programmable		Verified

RESOURCE TYPE		LINK
Datasheets		PIC16LC56A-04/P
Datasheets		Microchip RoHS
Datasheets		Microchip REACH
Datasheets		Qualification Revision 18/Dec/2013
Datasheets		Packing Changes 10/Oct/2016
Datasheets		Label and Packing Changes 23/Sep/2015

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant
