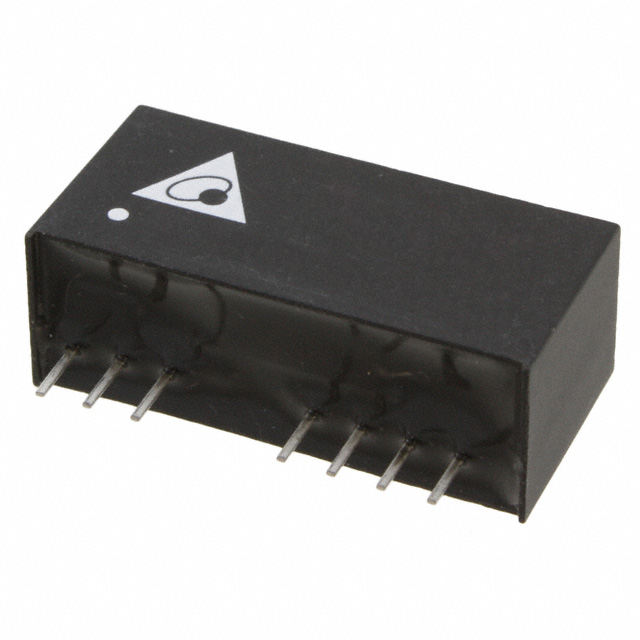

PH02S2412A _ DC DC Converters_Power Supplies

Part Number	PH02S2412A
Manufacturer	Delta Electronics / Fans
Other Part Numbers	941-1190-ND 941-1190
Description	DC DC CONVERTER 12V 2W
Detailed Description	Isolated Module DC DC Converter 1 Output 12V 167mA 9V - 36V Input
Manufacturer Standard Lead Time	30 weeks

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		Delta Electronics / Fans
Series		PH02S/D (2W)
Packaging		Tube
Part Status		Active
Features		Remote On/Off, SCP, UVLO
Package / Case		9-SIP Module, 7 Leads
Size / Dimension		1.02" L x 0.36" W x 0.49" H (25.9mm x 9.1mm x 12.4mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 85°C
Applications		Medical
Voltage - Input (Max)		36V
Efficiency		79%
Current - Output (Max)		167mA
Voltage - Input (Min)		9V
Voltage - Output 1		12V
Control Features		Enable, Active Low
Power (Watts)		2 W
Number of Outputs		1
Voltage - Isolation		1.5 kV

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
