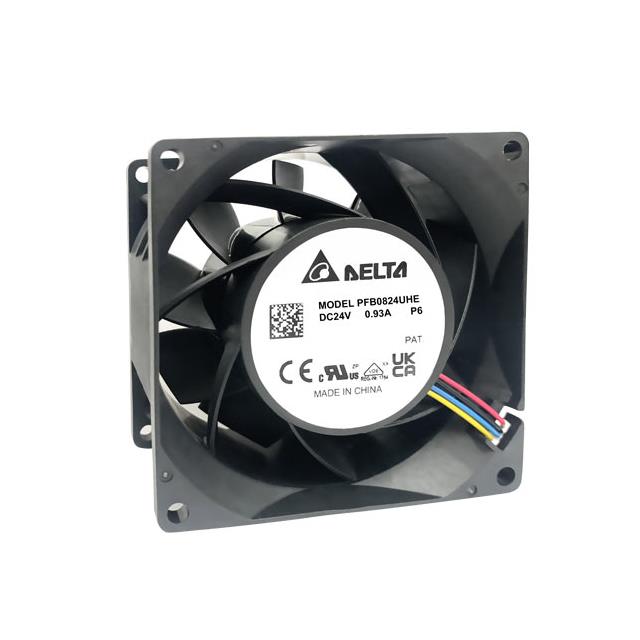

PFB0824UHEP6

Part Number
PFB0824UHEP6
Manufacturer Delta Electronics / Fans
Other Part Numbers
603-PFB0824UHEP6-ND
603-PFB0824UHEP6
Description AXIAL 80X80X38MM 24V PWM IP68
Detailed Description Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 96.8 CFM (2.71m³/min) 4 Wire Leads
Manufacturer Standard Lead Time 32 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Delta Electronics / Fans
Series
PFB
Packaging
Box
Part Status Active
Features Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Voltage - Rated 24VDC
Size / Dimension Square - 80mm L x 80mm H
Bearing Type Ball
Current Rating (Amps) 0.680A
RPM 7000 RPM
Air Flow 96.8 CFM (2.71m³/min)
Width 38.00mm
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Voltage Range 14 ~ 26.4VDC
Termination 4 Wire Leads
Approval Agency CE, cURus, VDE
Ingress Protection IP68 - Dust Tight, Waterproof
Lifetime @ Temp. 70000 Hrs @ 40°C
Fan Type Tubeaxial
Noise 57.9dB(A)
Static Pressure 1.148 in H2O (286.0 Pa)
Material - Frame Plastic
Material - Blade Plastic
Power (Watts) 16.32 W

Documents & Media

RESOURCE TYPE LINK
Datasheets PFB0824UHEP6

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) Not Applicable
