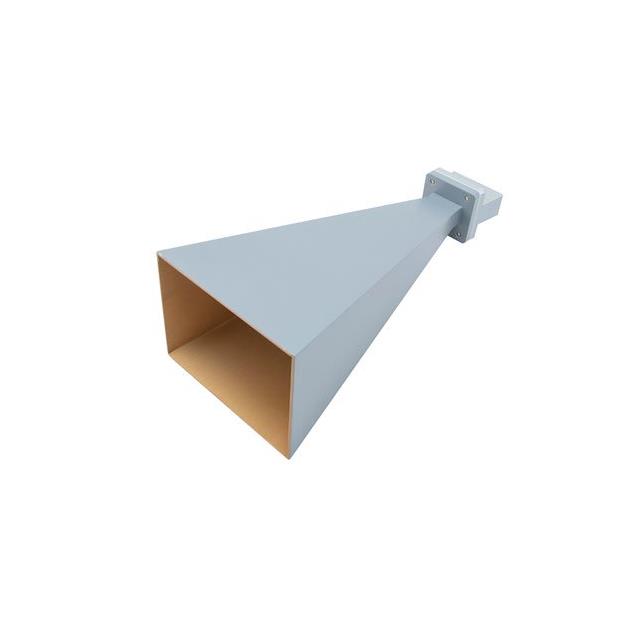

PEWAN075-20ELSF

Part Number
PEWAN075-20ELSF
Manufacturer Pasternack
Other Part Numbers
3985-PEWAN075-20ELSFTB-ND
3985-PEWAN075-20ELSFTB
Description WR75 GAIN HRN 10-15GHZ 20DBI
Detailed Description 12.5GHz General Purpose Horn RF Antenna 10GHz ~ 15GHz 20dBi SMA Female Waveguide Mount
Datasheet Datasheet

Product Attributes

Category
Manufacturer Pasternack
Series
Packaging
Tape & Box (TB)
Part Status Active
Features Cable - 305mm, Cable - 3.048m, Cable - 7.62m
Mounting Type Waveguide Mount
Frequency Range 10GHz ~ 15GHz
Applications General Purpose
Gain 20dBi
Termination SMA Female
Number of Bands 1
VSWR 1.4
Antenna Type Horn
Height (Max) 2.721" (69.11mm)
Frequency Group Wide Band
Frequency (Center/Band) 12.5GHz

Documents & Media

RESOURCE TYPE LINK
Datasheets PEWAN075-20ELSF

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8529.10.4040
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
RoHS Status RoHS Compliant
