PE9628 _ Coaxial Connector (RF) Adapters_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	PE9628
Manufacturer	Pasternack
Other Part Numbers	3985-PE9628-ND 3985-PE9628
Description	75 Ohm N Female to 75 Ohm TNC Ma

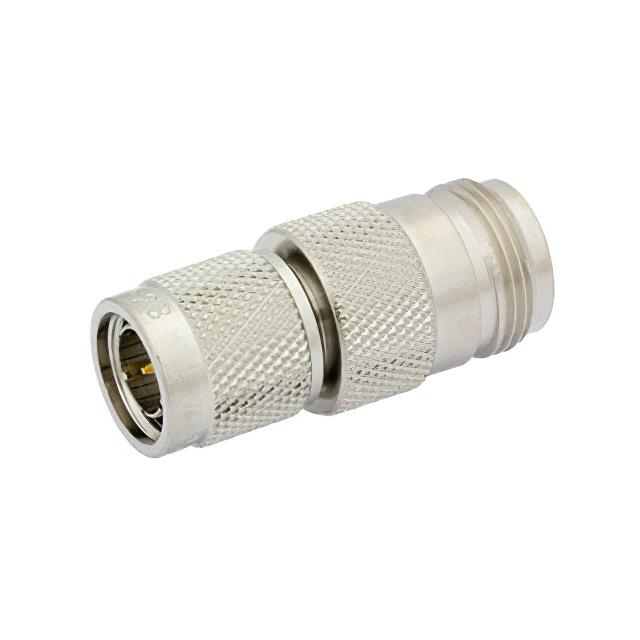

Detailed Description	Adapter Coaxial Connector N Jack, Female Socket To TNC Plug, Male Pin 75 Ohms
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Adapters
Manufacturer		Pasternack
Series
Packaging		Retail Package
Part Status		Active
Impedance		75 Ohms
Mounting Type		Free Hanging (In-Line)
Style		Straight
Convert From (Adapter End)		N Jack, Female Socket
Convert To (Adapter End)		TNC Plug, Male Pin
Operating Temperature		-65°C ~ 165°C
Fastening Type		Threaded, Threaded
Dielectric Material		Polytetrafluoroethylene (PTFE)
Adapter Series		N to TNC
Adapter Type		Plug to Jack
Center Gender		Female to Male
Conversion Type		Between Series
Body Material		Brass
Center Contact Material		Brass
Body Finish		Nickel
Center Contact Plating		Gold
Frequency - Max		500 MHz

RESOURCE TYPE		LINK
Datasheets		PE9628
