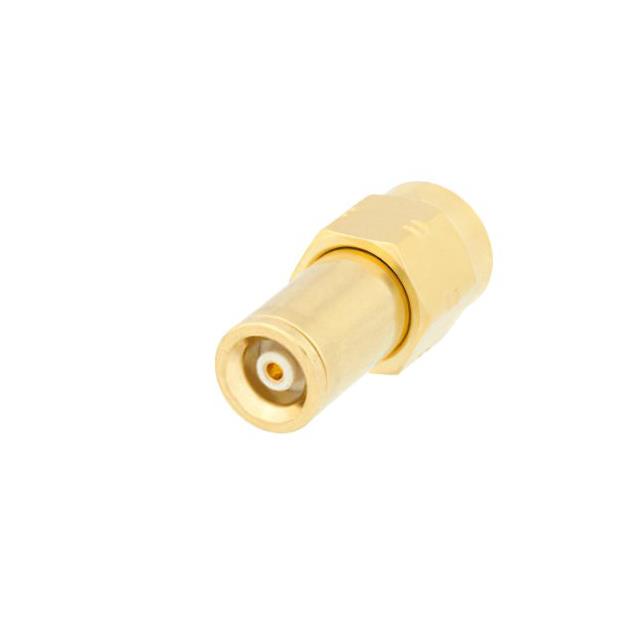

PE91362 _ Coaxial Connector (RF) Adapters_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	PE91362
Manufacturer	Pasternack
Other Part Numbers	3985-PE91362-ND 3985-PE91362
Description	SMA Male to MMBX Jack Snap-On Ad
Detailed Description	Adapter Coaxial Connector SMA Plug, Male Pin To MMBX Jack, Female Socket 50 Ohms
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Adapters
Manufacturer		Pasternack
Series
Packaging		Retail Package
Part Status		Active
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line)
Style		Straight
Convert From (Adapter End)		SMA Plug, Male Pin
Convert To (Adapter End)		MMBX Jack, Female Socket
Operating Temperature		-55°C ~ 155°C
Insertion Loss		0.42dB
Fastening Type		Snap-On, Threaded
Dielectric Material		Polytetrafluoroethylene (PTFE)
Adapter Series		SMA to MMBX
Adapter Type		Plug to Jack
Center Gender		Female to Male
Conversion Type		Between Series
Body Material		Beryllium Copper, Brass
Mating Cycles		500
Center Contact Material		Beryllium Copper
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		12.4 GHz
