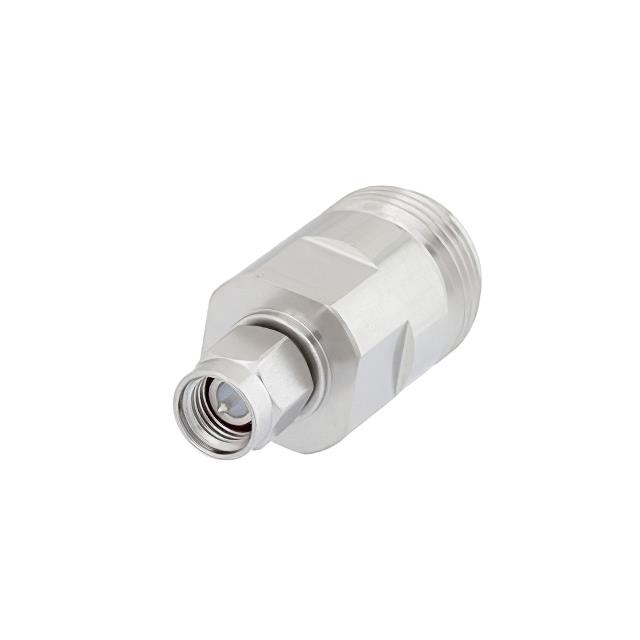

PE91178 _ Coaxial Connector (RF) Adapters_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	PE91178
Manufacturer	Pasternack
Other Part Numbers	3985-PE91178-ND 3985-PE91178
Description	Low PIM N Female to SMA Male Ada
Detailed Description	Adapter Coaxial Connector N Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Adapters
Manufacturer		Pasternack
Series
Packaging		Retail Package
Part Status		Active
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line)
Style		Straight
Convert From (Adapter End)		N Jack, Female Socket
Convert To (Adapter End)		SMA Plug, Male Pin
Operating Temperature		-45°C ~ 125°C
Fastening Type		Threaded, Threaded
Dielectric Material		Polytetrafluoroethylene (PTFE)
Adapter Series		SMA to N
Adapter Type		Plug to Jack
Center Gender		Female to Male
Conversion Type		Between Series
Body Material		Brass
Center Contact Material		Beryllium Copper
Body Finish		Tri-Metal
Center Contact Plating		Silver
Frequency - Max		6 GHz

RESOURCE TYPE		LINK
Datasheets		PE91178
