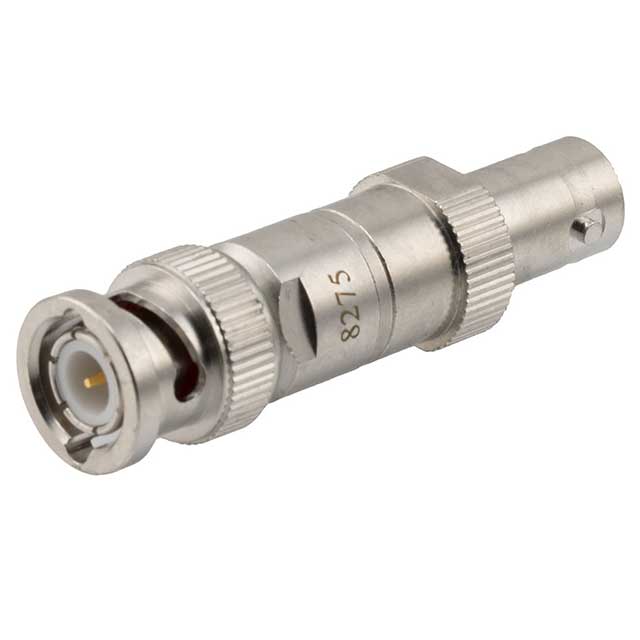

PE8275 _ Coaxial Connector (RF) Adapters_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	PE8275
Manufacturer	Pasternack
Other Part Numbers	3985-PE8275-ND 3985-PE8275
Description	DC BLOCK: BNC 0.03-1GHZ
Detailed Description	Adapter Coaxial Connector BNC Jack, Female Socket To BNC Plug, Male Pin 50 Ohms
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Adapters
Manufacturer		Pasternack
Series
Packaging		Bulk
Part Status		Active
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line)
Style		Straight
Convert From (Adapter End)		BNC Jack, Female Socket
Convert To (Adapter End)		BNC Plug, Male Pin
Insertion Loss		0.20dB
Fastening Type		Bayonet Lock, Bayonet Lock
Adapter Series		BNC to BNC
Adapter Type		Plug to Jack
Center Gender		Female to Male
Conversion Type		Same Series
Body Material		Brass
Center Contact Material		Brass, Bronze
Body Finish		Tri-Metal
Center Contact Plating		Gold
Frequency - Max		1 GHz

RESOURCE TYPE		LINK
Datasheets		PE8275

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8517.70.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant
