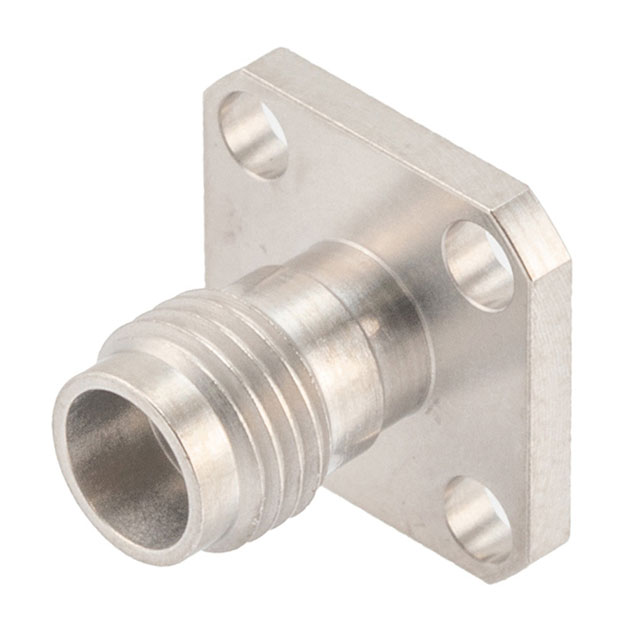

PE45613 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	PE45613
Manufacturer	Pasternack
Other Part Numbers	3985-PE45613-ND 3985-PE45613
Description	2.4(F) FLD RPL 4HOLE 0.020" PIN
Detailed Description	2.4mm (APC-2.4, OS-50) Connector Receptacle, Female Socket 50 Ohms Panel Mount Compression
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Pasternack
Series
Packaging		Bag
Part Status		Active
Features		Field Replaceable, For Hermetically Sealed Pin
Connector Type		Receptacle, Female Socket
Contact Termination		Compression
Impedance		50 Ohms
Mounting Type		Panel Mount
Operating Temperature		-40°C ~ 165°C
Fastening Type		Threaded
Connector Style		2.4mm (APC-2.4, OS-50)
Dielectric Material		Polyetherimide (PEI)
Mounting Feature		Flange
Body Material		Stainless Steel
Housing Color		Silver
Mating Cycles		500
Shield Termination		Screw
Center Contact Material		Beryllium Copper
Center Contact Plating		Gold
Frequency - Max		50 GHz
Number of Ports		1

RESOURCE TYPE		LINK
Datasheets		PE45613

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
