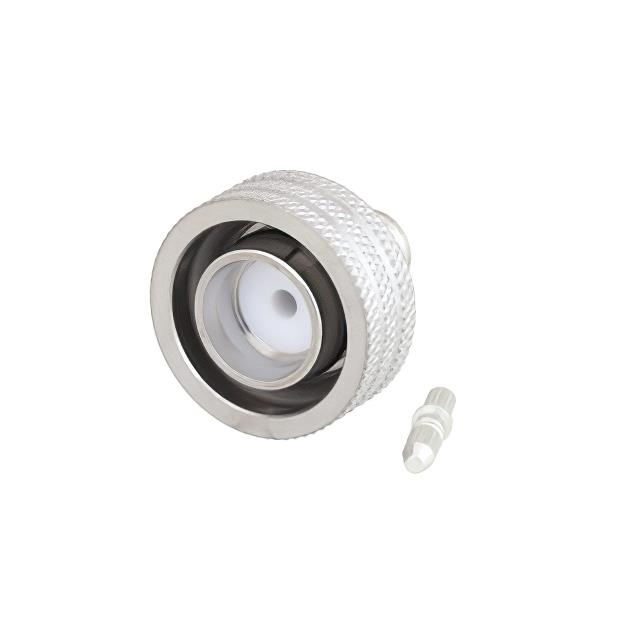

PE45297 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	PE45297
Manufacturer	Pasternack
Other Part Numbers	3985-PE45297-ND 3985-PE45297
Description	4.3-10 Male Low PIM Push-On Conn
Detailed Description	4.3/10 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Pasternack
Series
Packaging		Retail Package
Part Status		Active
Connector Type		Plug, Male Pin
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line)
Operating Temperature		-55°C ~ 90°C
Insertion Loss		0.13dB
Fastening Type		Threaded
Ingress Protection		IP67 - Dust Tight, Waterproof
Connector Style		4.3/10
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Brass
Housing Color		Silver
Mating Cycles		100
Shield Termination		Solder
Center Contact Material		Brass
Body Finish		Tri-Metal
Center Contact Plating		Silver
Frequency - Max		6 GHz
Number of Ports		1
Voltage Rating		850 V

RESOURCE TYPE		LINK
Datasheets		PE45297
