PE4256MLIAA-Z

PE4256MLIAA-Z

Part Number	PE4256MLIAA-Z
Manufacturer	pSemi
Other Part Numbers	1046-1040-2-ND 1046-1040-1-ND 1046-1040-6-ND PE4256MLIAAZ PE4256MLIAA-Z-ND 1046-1040-6 4256 1046-1040-2 1046-1040-1
Description	IC RF SWITCH SPDT 3GHZ 20QFN
Detailed Description	RF Switch IC CATV SPDT 3 GHz 75Ohm 20-QFN (4x4)
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Product Attributes

Category		RF and Wireless RF Switches
Manufacturer		pSemi
Series		UltraCMOS®
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

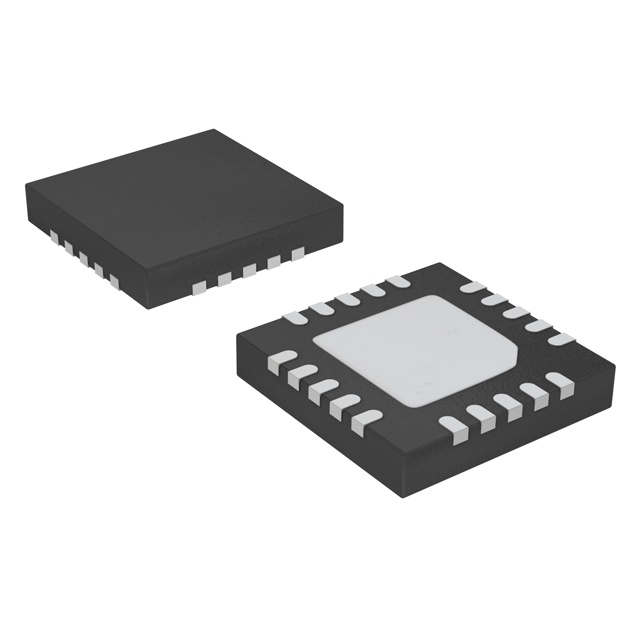

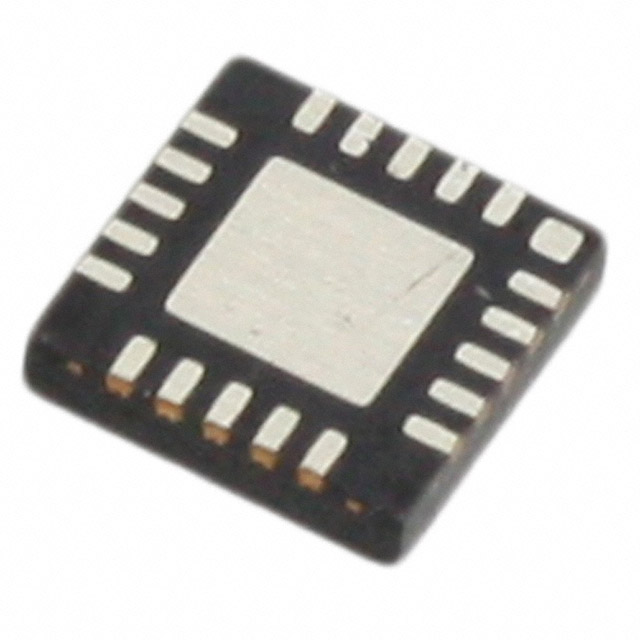

Package / Case		20-VFQFN Exposed Pad
Impedance		75Ohm
Mounting Type		Surface Mount
Circuit		SPDT
RF Type		CATV
Operating Temperature		-40°C ~ 85°C
Voltage - Supply		2.7V ~ 3.3V
Insertion Loss		1.1dB
Frequency Range		5MHz ~ 3GHz
Topology		Absorptive
P1dB		31dBm
Test Frequency		2.2GHz
Isolation		52dB
Supplier Device Package		20-QFN (4x4)
IIP3		55dBm

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PE4256MLIAA-Z

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant

In Stock: 8891

Can ship immediately.
