PE4172

Part Number
PE4172
Manufacturer Pasternack
Other Part Numbers
3985-PE4172-ND
3985-PE4172

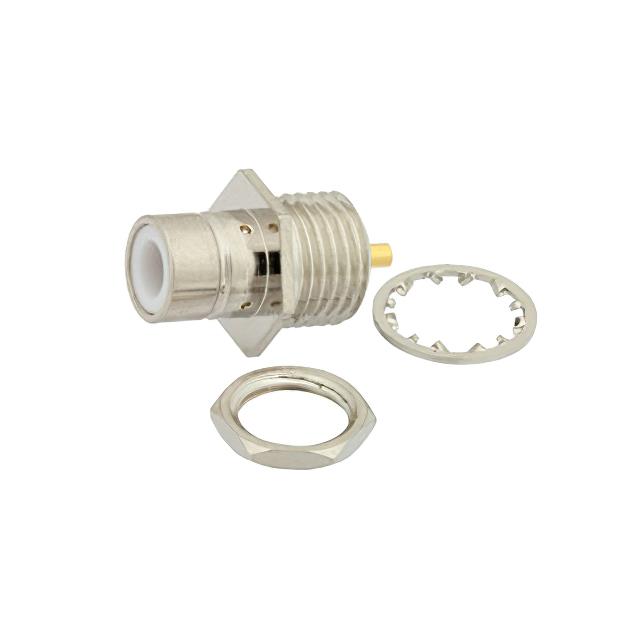

Description 75 Ohm SMB Jack Bulkhead Connect
Detailed Description SMB Connector Jack, Male Pin 75 Ohms Panel Mount Solder Cup
Datasheet Datasheet

Product Attributes

Category
Manufacturer Pasternack
Series
Packaging
Retail Package
Part Status Active
Connector Type Jack, Male Pin
Contact Termination Solder Cup
Impedance 75 Ohms
Mounting Type Panel Mount
Fastening Type Snap-On
Connector Style SMB
Dielectric Material Polytetrafluoroethylene (PTFE)
Mounting Feature Bulkhead - Rear Side Nut
Body Material Brass
Housing Color Silver
Shield Termination Solder
Body Finish Nickel
Center Contact Plating Gold
Number of Ports 1

Documents & Media

RESOURCE TYPE LINK
Datasheets PE4172

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.4010
