PE3C8815/VL-72 _ Coaxial Cables (RF)_Cable Assemblies

Part Number	PE3C8815/VL-72
Manufacturer	Pasternack
Other Part Numbers	3985-PE3C8815/VL-72TB-ND 3985-PE3C8815/VL-72TB

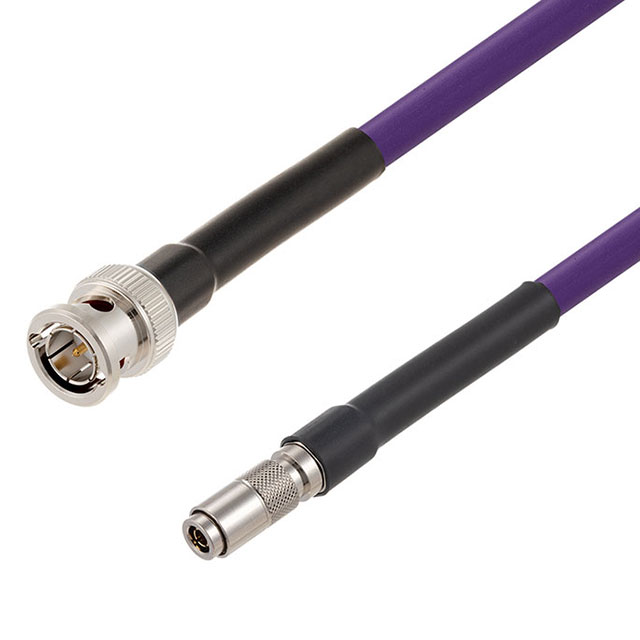

Description	CBL ASSY 1.0/2.3-BNC PLUG-PLG 6'
Detailed Description	Cable Assembly Coaxial 1.0/2.3 to BNC Belden 1694A 72.0" (1.8m) 6.0'
Datasheet	Datasheet

Category		Cable Assemblies Coaxial Cables (RF)
Manufacturer		Pasternack
Series
Packaging		Tape & Box (TB)
Part Status		Active
Color		Violet
Length		72.0" (1.8m) 6.0'
Style		1.0/2.3 to BNC
Operating Temperature		-30°C ~ 75°C
Cable Type		Belden 1694A
1st Connector		BNC Plug
2nd Connector		1.0/2.3 Plug
Frequency - Max		6 GHz
1st Connector Mounting Type		Free Hanging (In-Line)
2nd Connector Mounting Type		Free Hanging (In-Line)
1st Contact Gender		Male
2nd Contact Gender		Male
Cable Impedance		75 Ohms
Connector Impedance		75 Ohms
Overall Impedance		75 Ohms

RESOURCE TYPE		LINK
Datasheets		PE3C8815/VL-72

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8544.20.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		Vendor Undefined
RoHS Status		RoHS non-compliant
