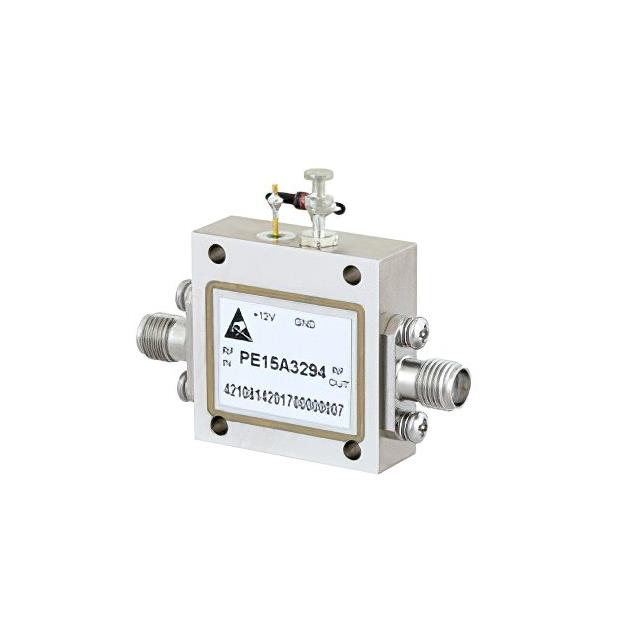

PE15A3294

Part Number
PE15A3294
Manufacturer Pasternack
Other Part Numbers
3985-PE15A3294-ND
3985-PE15A3294
Description 2.5 dB NF, 10 dBm P1dB, 6 GHz to
Detailed Description RF Amplifier IC General Purpose 6GHz ~ 18GHz Module
Datasheet Datasheet

Product Attributes

Category
Manufacturer Pasternack
Series
Packaging
Retail Package
Part Status Active
Package / Case Module, SMA Connectors
Mounting Type Chassis Mount
Frequency 6GHz ~ 18GHz
RF Type General Purpose
Voltage - Supply 11V ~ 13V
Gain 30dB
Current - Supply 200mA
Noise Figure 2.5dB
P1dB 10dBm
Supplier Device Package Module

Documents & Media

RESOURCE TYPE LINK
Datasheets PE15A3294
