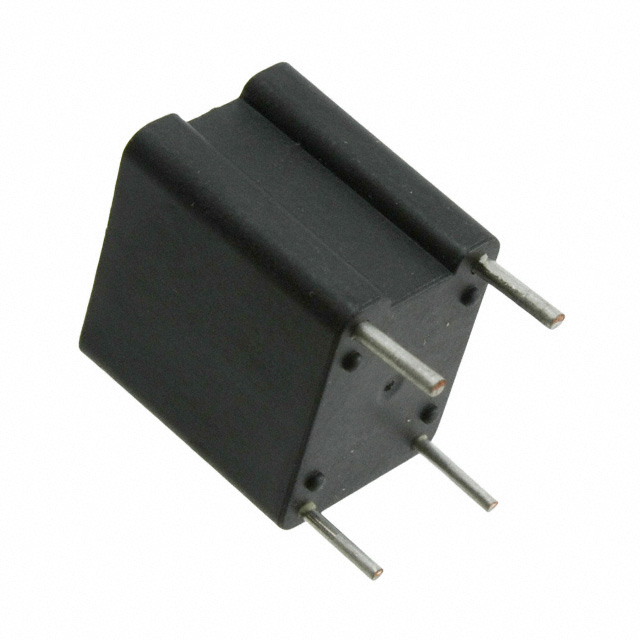

PE-67200NL

PE-67200NL

Part Number	PE-67200NL
Manufacturer	Pulse Larsen Antenna
Other Part Numbers	553-1554-ND PE-67200NL-ND 553-1554 PE67200NL
Description	CURR SENSE XFMR 38A T/H
Detailed Description	38 A Current Sense Transformer 10kHz ~ 200kHz 200Ohm Primary, 4.5Ohm Secondary 80 mH Through Hole
Manufacturer Standard Lead Time	11 weeks
Datasheet	Datasheet

Product Attributes

Category		Transformers Current Sense Transformers
Manufacturer		Pulse Larsen Antenna
Series
Packaging		Tray
Part Status		Active
Size / Dimension		0.565" L x 0.750" W (14.35mm x 19.05mm)
Mounting Type		Through Hole
Type		Invasive
Termination Style		PC Pin
DC Resistance (DCR)		200Ohm Primary, 4.5Ohm Secondary
Frequency Range		10kHz ~ 200kHz
Height - Seated (Max)		0.750" (19.05mm)
Current Ratio		200:1
Inductance		80 mH
Current Rating (Amps)		38 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PE-67200NL
Datasheets		Pulse Larson REACH
Datasheets		Mult Devs Location 14/Jan/2023

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.31.2000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 3798

Can ship immediately.
