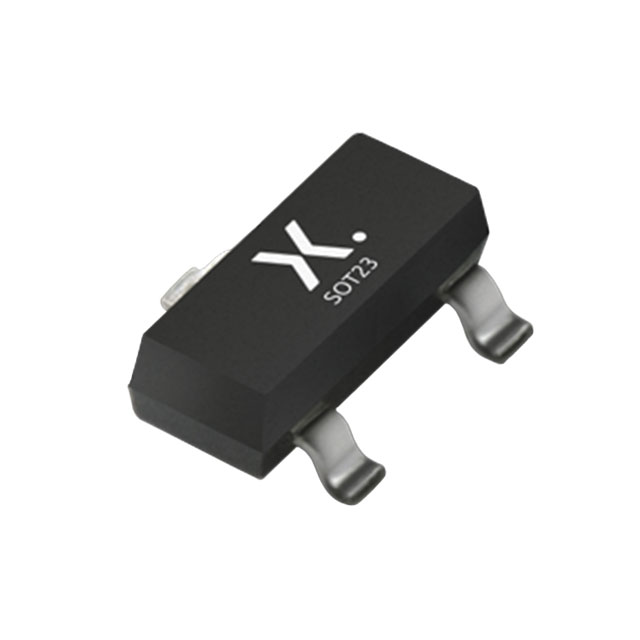

PDTC144ET,215

PDTC144ET,215

Part Number	PDTC144ET,215
Manufacturer	Philips
Other Part Numbers	2156-PDTC144ET,215-ND 2156-PDTC144ET,215 NEXPHIPDTC144ET,215
Description	TRANS PREBIAS NPN 50V SOT23
Detailed Description	Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50 V 100 mA 250 mW Surface Mount SOT-23
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Transistors Bipolar (BJT) Single, Pre-Biased Bipolar Transistors
Manufacturer		Philips
Series
Packaging		Bulk
Part Status		Active
Package / Case		TO-236-3, SC-59, SOT-23-3
Mounting Type		Surface Mount
Transistor Type		NPN - Pre-Biased
Vce Saturation (Max) @ Ib, Ic		150mV @ 500µA, 10mA
Current - Collector Cutoff (Max)		1µA
DC Current Gain (hFE) (Min) @ Ic, Vce		80 @ 5mA, 5V
Supplier Device Package		SOT-23
Current - Collector (Ic) (Max)		100 mA
Voltage - Collector Emitter Breakdown (Max)		50 V
Power - Max		250 mW
Resistor - Base (R1)		47 kOhms
Resistor - Emitter Base (R2)		47 kOhms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		PDTC144ET,215

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.21.0075
